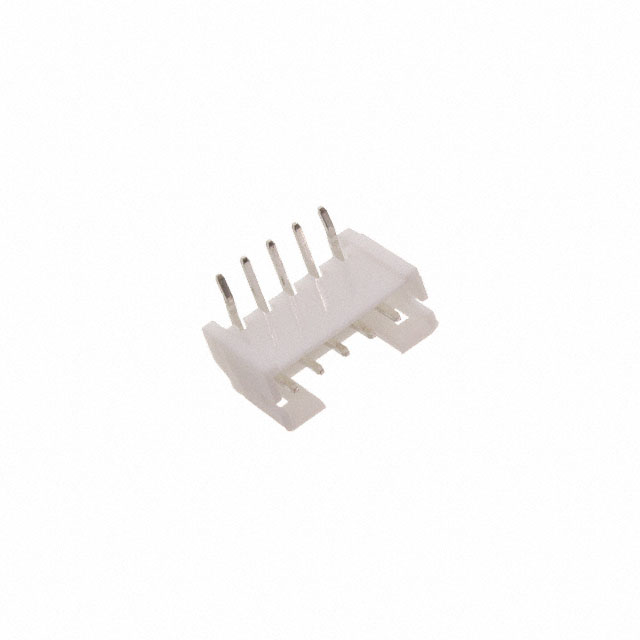

2SH-C-05-TR
Or copy the link below:
- Mfr.Part #
- 2SH-C-05-TR
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS 2MM
- Stock
- 80
- In Stock ：
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Post :
- 0.130 3.30mm
- Contact Shape :
- Square
- JESD-609 Code :
- e3
- Mating Contact Pitch :
- 0.079 inch
- Current Rating (Amps) :
- 2A
- Reference Standard :
- UL
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Series :
- 2SH
- Number Of PCB Rows :
- 1
- Number of Positions :
- 5
- Body Length or Diameter :
- 0.469 inch
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Bulk
- PCB Contact Pattern :
- RECTANGULAR
- Body Depth :
- 0.303 inch
- Insulation Color :
- White
- Terminal Pitch :
- 2.0066mm
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.197 5.00mm
- Voltage - Rated :
- 100VAC
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Number of Conductors :
- ONE
- Additional Feature :
- RoHS Compliant
- Contact Finish - Mating :
- Tin
- ECCN Code :
- EAR99
- Termination :
- Kinked Pin, Solder
- Operating Temperature :
- -25°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 2SH-C-05-TR
2SH Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.197 5.00mm Height
2SH-C-05-TR Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the 2SH Series.Among other features are ROHS COMPLIANT, to name only a few.It operates at an operating temperature of -25°C~85°C.
2SH-C-05-TR Features
2SH series
2SH-C-05-TR Applications
There are a lot of Adam Tech
2SH-C-05-TR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
