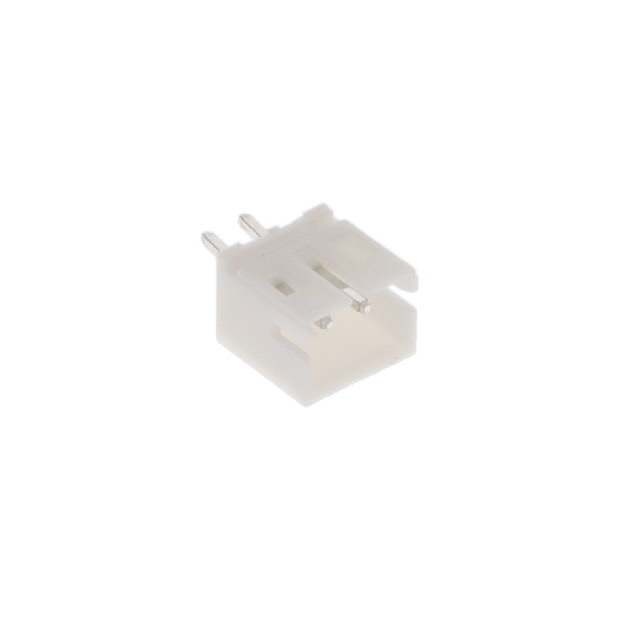

2SH-C-02-TS
Or copy the link below:
- Mfr.Part #
- 2SH-C-02-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2MM
- Stock
- 18,142
- In Stock ：
- 18,142
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Number of Conductors :
- ONE
- Factory Lead Time :
- 9 Weeks
- HTS Code :
- 8536.69.40.40
- Packaging :
- Bulk
- Number Of PCB Rows :
- 1
- Insulation Color :
- White
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Mounting Type :
- Through Hole
- Reference Standard :
- UL, CSA
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Insulation Height :
- 0.240 6.10mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Additional Feature :
- RoHS Compliant
- Mounting Option 1 :
- LOCKING
- Series :
- 2SH
- Current Rating (Amps) :
- 2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.134 3.40mm
- Contact Finish - Mating :
- Tin
- Polarization Key :
- POLARIZED HOUSING
- Shrouding :
- Shrouded - 4 Wall
- Lead Free :
- Lead Free
- ECCN Code :
- EAR99
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Board Mounting Option :
- SOLDER HOLDING POSTS
- Termination :
- Kinked Pin, Solder
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions :
- 2
- Mating Contact Pitch :
- 0.079 inch
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -25°C~85°C
- Voltage - Rated :
- 100VAC
- Number of Rows :
- 1
- Pitch - Mating :
- 0.079 2.00mm
- Style :
- Board to Cable/Wire
- Datasheets
- 2SH-C-02-TS
2SH-C-02-TS Documents
2SH Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.240 6.10mm Height
2SH-C-02-TS Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 2SH Series.To name a few, there is also ROHS COMPLIANT.As a result, the device runs at -25°C~85°C Operating Temperature.
2SH-C-02-TS Features
2SH series
2SH-C-02-TS Applications
There are a lot of Adam Tech
2SH-C-02-TS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
