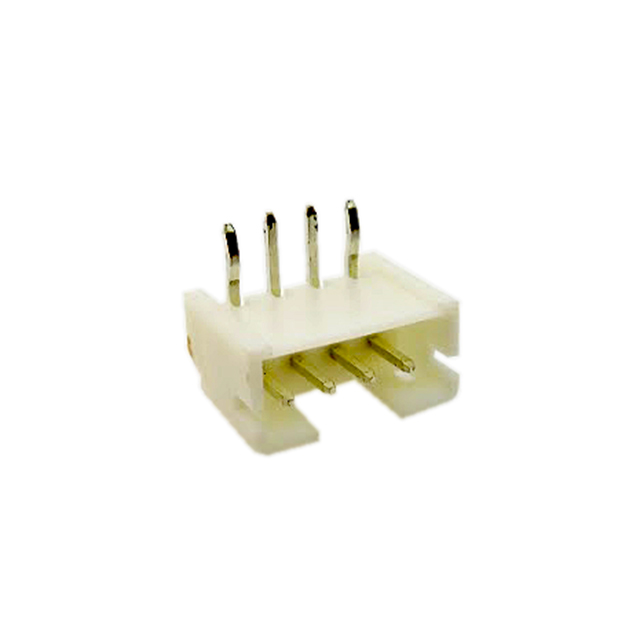

2SH-C-04-TR

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Operating Temperature :

-25°C~85°C

Termination :

Kinked Pin, Solder

Insulation Color :

White

JESD-609 Code :

e3

ECCN Code :

EAR99

Terminal Pitch :

2.0066mm

Voltage - Rated :

100VAC

Current Rating (Amps) :

2A

RoHS Status :

ROHS3 Compliant

Number Of PCB Rows :

1

Contact Shape :

Square

Number of Positions :

4

Body Depth :

0.303 inch

Material Flammability Rating :

UL94 V-0

Body Length or Diameter :

0.39 inch

Number of Rows :

1

PCB Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.079 inch

Packaging :

Bulk

Contact Type :

Male Pin

Insulation Material :

Polyamide (PA66), Nylon 6/6

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Mounting Type :

Through Hole, Right Angle

Number of Conductors :

ONE

Additional Feature :

RoHS Compliant

Style :

Board to Cable/Wire

Reference Standard :

UL

Series :

2SH

Factory Lead Time :

9 Weeks

Contact Length - Post :

0.130 3.30mm

Contact Material :

Brass

Pitch - Mating :

0.079 2.00mm

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

Tin

Insulation Height :

0.197 5.00mm

Reliability :

COMMERCIAL

Connector Type :

Header
