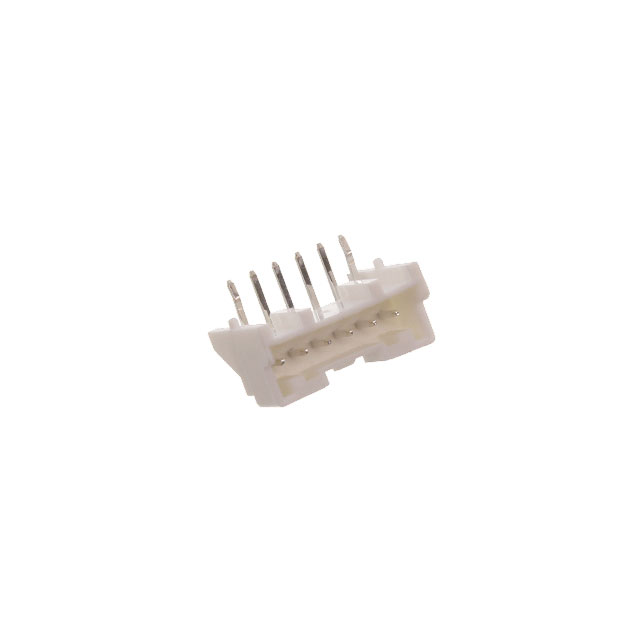

2SH-H-06-TR

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Factory Lead Time :

10 Weeks

PCB Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.079 inch

Feature :

Board Guide

Dielectric Withstanding Voltage :

800VAC V

Contact Material :

Brass

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

Number Of PCB Rows :

1

Contact Shape :

Square

Packaging :

Bulk

Body Length or Diameter :

0.552 inch

Series :

2SH

Rated Current (Signal) :

3A

Contact Resistance :

20mOhm

Contact Finish - Mating :

Tin

Reliability :

COMMERCIAL

Board Mounting Option :

PEG

Voltage - Rated :

100VAC

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Body Depth :

0.303 inch

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL, CSA

Shrouding :

Shrouded - 4 Wall

Number of Positions Loaded :

All

Contact Length - Post :

0.134 3.40mm

Style :

Board to Board or Cable

Termination :

Kinked Pin, Solder

Operating Temperature :

-25°C~85°C

Number of Positions :

6

Pitch - Mating :

0.079 2.00mm

Insulator Color :

White

Number of Conductors :

ONE

Fastening Type :

Locking Ramp

Connector Type :

Header

Contact Type :

Male Pin
