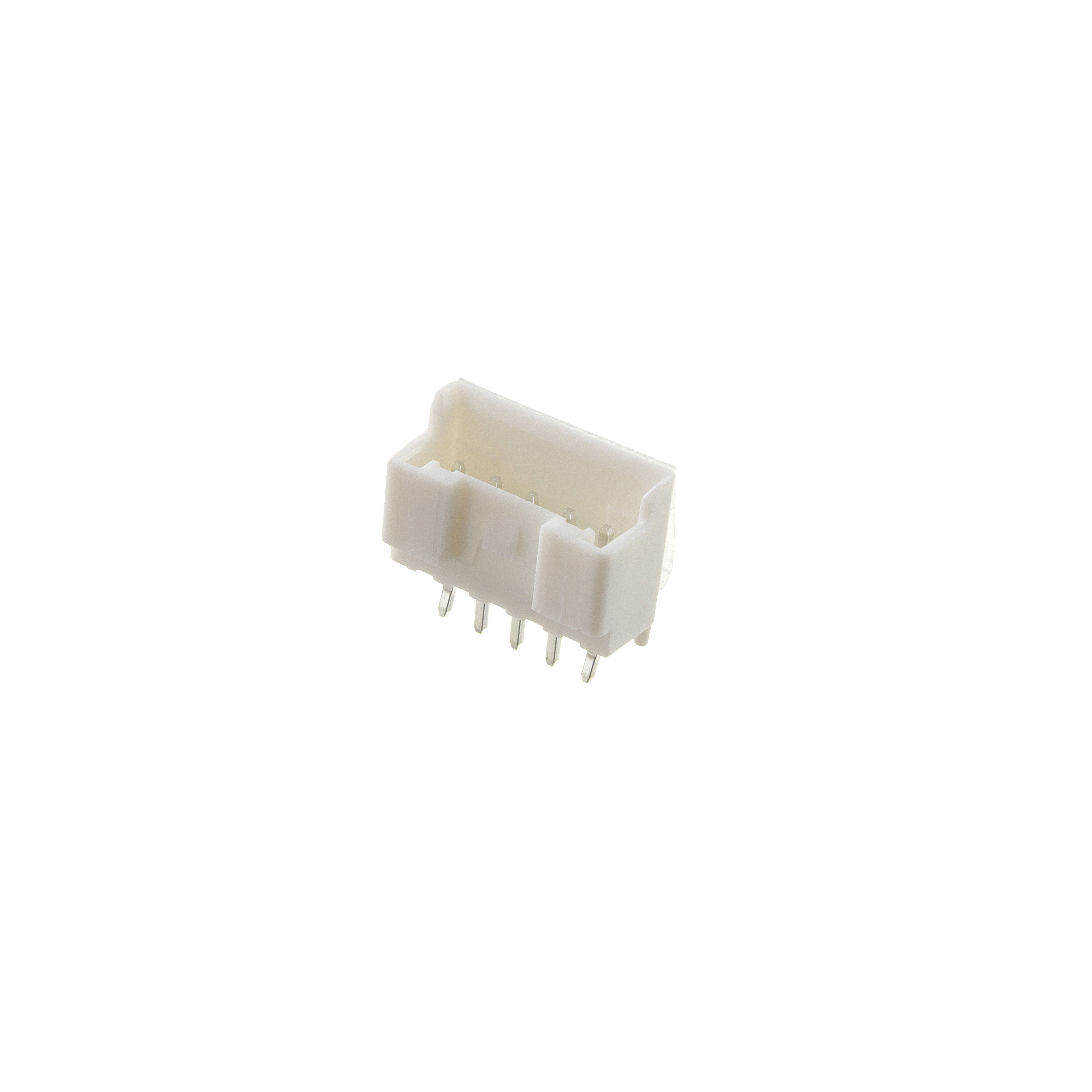

2SH-H-05-TS

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Number of Conductors :

ONE

Voltage - Rated :

250VAC/DC

Insulation Color :

White

Number of Positions :

5

Operating Temperature :

-25°C~85°C

Mating Contact Pitch :

0.079 inch

Material Flammability Rating :

UL94 V-0

Contact Gender :

FEMALE

Fastening Type :

Locking Ramp

Insulation Height :

0.303 7.70mm

Number Of PCB Rows :

1

Feature :

Board Guide

Factory Lead Time :

10 Weeks

Shrouding :

Shrouded - 4 Wall

Contact Resistance :

20mOhm

Number of Rows :

1

ECCN Code :

EAR99

Mounting Option 1 :

FRICTION RAMP

Dielectric Withstanding Voltage :

800VAC V

Current Rating (Amps) :

3A AC/DC

Connector Type :

Header

Contact Length - Post :

0.118 3.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Breadth :

0.209 inch

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Square

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Packaging :

Bulk

Reference Standard :

UL, CSA

Contact Finish - Mating :

Tin

Body Depth :

0.303 inch

Pitch - Mating :

0.079 2.00mm

Contact Material :

Brass

Terminal Pitch :

2.0066mm

Body Length or Diameter :

0.472 inch

Style :

Board to Board or Cable

Series :

2SH

Mounting Type :

Through Hole

Termination :

Kinked Pin, Solder

PCB Contact Pattern :

RECTANGULAR

Board Mounting Option :

PEG

Number of Positions Loaded :

All

RoHS Status :

ROHS3 Compliant

Additional Feature :

RoHS Compliant

Contact Type :

Male Pin
