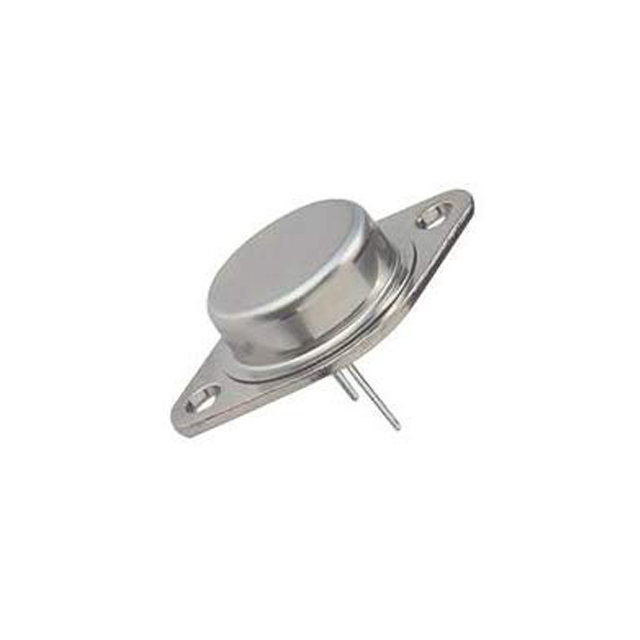

2N3791

Manufacturer :

Solid State Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

RoHS Status :

Non-RoHS Compliant

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Max Operating Temperature :

200°C

Collector Base Voltage (VCBO) :

60V

JESD-609 Code :

e0

Factory Lead Time :

12 Weeks

Configuration :

Single

DC Current Gain-Min (hFE) :

30

Radiation Hardening :

No

Case Connection :

COLLECTOR

Lead Free :

Contains Lead

Terminal Form :

PIN/PEG

Published :

2002

Max Power Dissipation :

5W

Max Collector Current :

10A

ECCN Code :

EAR99

Number of Pins :

3

Terminal Finish :

TIN LEAD

Polarity/Channel Type :

PNP

JESD-30 Code :

O-MBFM-P2

Packaging :

Bulk

Terminal Position :

BOTTOM

Mount :

Through Hole

Transistor Application :

SWITCHING

Transition Frequency :

4MHz

Collector Emitter Voltage (VCEO) :

60V

Number of Terminations :

2

Number of Elements :

1

Min Operating Temperature :

-65°C

Pbfree Code :

No

Pin Count :

2
