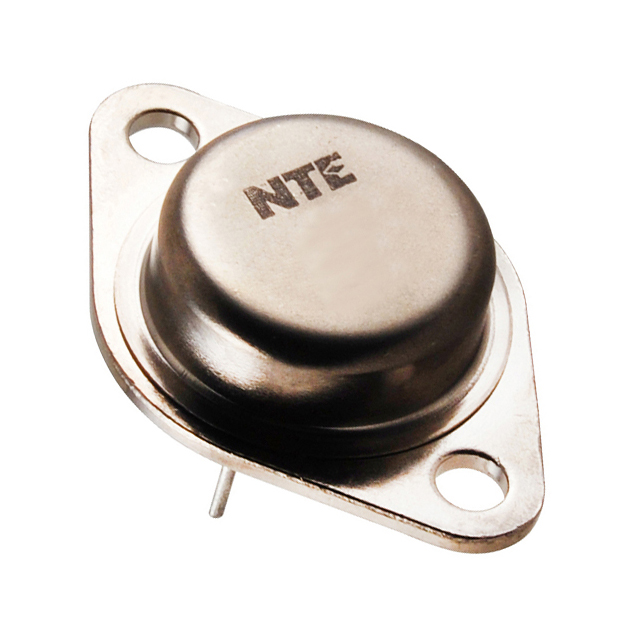

2N3773
Or copy the link below:
- Mfr.Part #
- 2N3773
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-204AA, TO-3
- Datasheet
- Download
- Description
- TRANS NPN 140V 16A TO204
- Stock
- 412
- In Stock ：
- 412
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Collector Base Voltage (VCBO) :
- 160V
- Transistor Type :
- NPN
- Pin Count :
- 2
- Collector Emitter Breakdown Voltage :
- 140V
- Weight :
- 13.607771g
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Factory Lead Time :
- 10 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- hFE Min :
- 15
- Radiation Hardening :
- No
- Transistor Application :
- SWITCHING
- Polarity/Channel Type :
- NPN
- Height :
- 8.51mm
- Terminal Form :
- PIN/PEG
- Collector Emitter Saturation Voltage :
- 1.4V
- Mounting Type :
- Through Hole
- Max Power Dissipation :
- 150W
- Number of Terminations :
- 2
- Voltage - Rated DC :
- 140V
- Collector Emitter Voltage (VCEO) :
- 140V
- ECCN Code :
- EAR99
- Transistor Element Material :
- SILICON
- Peak Reflow Temperature (Cel) :
- 260
- Base Part Number :
- 2N3773
- Operating Temperature :
- -65°C~200°C TJ
- Number of Elements :
- 1
- Number of Pins :
- 2
- Current Rating :
- 16A
- Surface Mount :
- No
- Length :
- 39.37mm
- Pbfree Code :
- yes
- Contact Plating :
- Tin
- Packaging :
- Tray
- Width :
- 26.67mm
- Package / Case :
- TO-204AA, TO-3
- JESD-609 Code :
- e3
- Current - Collector Cutoff (Max) :
- 10mA
- Element Configuration :
- Single
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 15 @ 8A 4V
- REACH SVHC :
- No SVHC
- Lead Free :
- Lead Free
- Power Dissipation :
- 150W
- Published :
- 2004
- Emitter Base Voltage (VEBO) :
- 7V
- Terminal Position :
- BOTTOM
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Collector Current :
- 16A
- Vce Saturation (Max) @ Ib, Ic :
- 1.4V @ 800mA, 8A
- Case Connection :
- COLLECTOR
- Datasheets
- 2N3773
2N3773 Documents
NPN -65°C~200°C TJ 10mA 1 Elements 2 Terminations SILICON NPN TO-204AA, TO-3 Tray Through Hole
2N3773G Overview
As the DC current gain is the ratio of the collector current to the base current, for this device the DC current gain is 15 @ 8A 4V.Single BJT transistor has a collector emSingle BJT transistorter saturation voltage of 1.4V, which allows maximum flexibilSingle BJT transistory in design.As a result of vce saturation, Ic reaches its maximum value (saturated), and vce saturation(Max) is 1.4V @ 800mA, 8A.Single BJT transistor is possible to achieve a high level of efficiency by maintaining the emSingle BJT transistorter base voltage at 7V.Its current rating is 16A, which means that it can sustain a maximum current for an indefinite period of time without degrading too much.During maximum operation, collector current can be as low as 16A volts.
2N3773G Features
the DC current gain for this device is 15 @ 8A 4V
a collector emitter saturation voltage of 1.4V
the vce saturation(Max) is 1.4V @ 800mA, 8A
the emitter base voltage is kept at 7V
the current rating of this device is 16A
2N3773G Applications
There are a lot of ON Semiconductor
2N3773G applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
