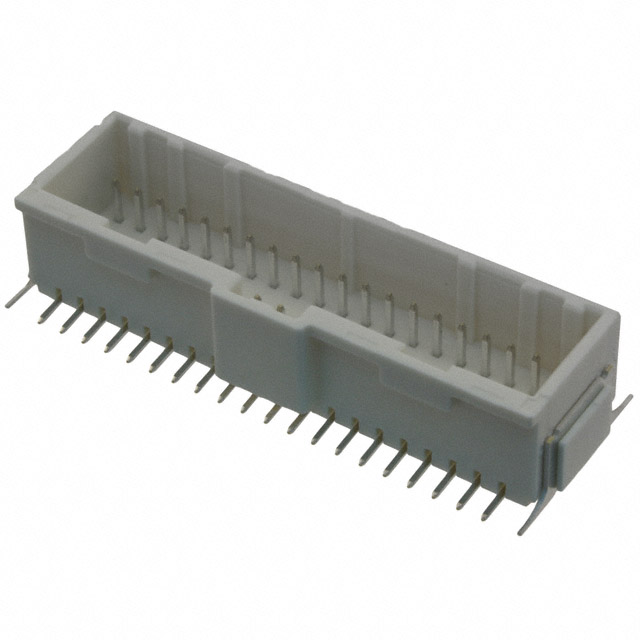

0557634070
Or copy the link below:
- Mfr.Part #
- 0557634070
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 40POS 2MM
- Stock
- 1,275
- In Stock ：
- 1,275
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.079 2.00mm
- Applications :
- General Purpose, Industrial, Medical
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Natural
- Fastening Type :
- Latch Holder
- Factory Lead Time :
- 12 Weeks
- Termination :
- Solder
- Connector Type :
- Header
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Number of Positions :
- 40
- Contact Shape :
- Square
- Number of Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Series :
- MicroClasp
- Feature :
- Solder Retention
- Packaging :
- Cut Tape (CT)
- Number of Positions Loaded :
- All
- Stack Height (Mating) :
- 14.15mm
- Mounting Type :
- Surface Mount
- Contact Finish Thickness - Mating :
- 78.7μin 2.00μm
- Insulation Height :
- 0.398 10.11mm
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 0557634070
0557634070 Documents
MicroClasp Series 2-Row Header Solder Brass Cut Tape (CT) Surface Mount Tin Polyamide (PA46), Nylon 4/6 40-Position Board to Cable/Wire 0.398 10.11mm Height
0557634070 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Cut Tape (CT) case for packaging the product.This product is part of the MicroClasp Series.A possible application for the device is General Purpose, Industrial, Medical.In many ways, its Solder Retention feature makes it more powerful.
0557634070 Features
MicroClasp series
0557634070 Applications
There are a lot of Molex
0557634070 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
