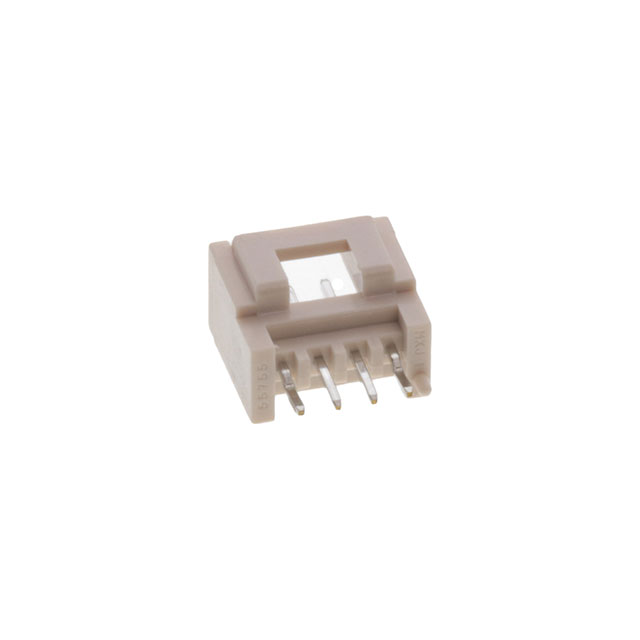

0557550419

Manufacturer :

Molex

Product Category :

Headers, Male Pins

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Fastening Type :

Latch Lock

Orientation :

Vertical

Stack Height (Mating) :

13.45mm

Connector Type :

Header

Contact Type :

Male Pin

Contact Material :

Brass

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole

Contact Finish - Mating :

Tin

Pitch - Mating :

0.079 2.00mm

Number of Positions :

4

DIN Conformance :

No

Number of Circuits :

3

Current Rating :

2.5A

Insulation Height :

0.352 8.94mm

Packaging :

Tray

Style :

Board to Cable/Wire

Filter Feature :

No

Terminal Pitch :

2mm

JESD-609 Code :

e3

Contact Shape :

Square

Mixed Contacts :

No

Mounting Type :

Through Hole

Additional Feature :

POLARIZED, SHROUDED

Overall Contact Length :

0.437 11.10mm

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Polyamide (PA66), Nylon 6/6, Glass Filled

Termination :

Kinked Pin, Solder

IEC Conformance :

No

Contact Length - Post :

0.130 3.30mm

Applications :

Automotive, General Purpose, Industrial

Factory Lead Time :

20 Weeks

Contact Length - Mating :

0.144 3.66mm

Feature :

Board Guide

Series :

MicroTPA 55755

Insulation Color :

Natural

Pbfree Code :

yes

Shrouding :

Shrouded - 4 Wall
