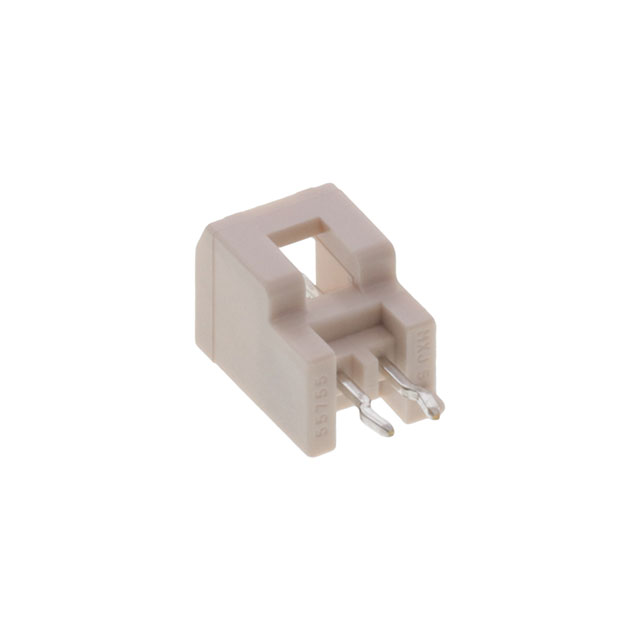

0557550219

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Type :

Through Hole

Contact Length - Post :

0.130 3.30mm

Overall Contact Length :

0.437 11.10mm

HTS Code :

8536.69.40.40

Feature :

Board Guide

Reliability :

COMMERCIAL

Contact Finish - Mating :

Tin

Number of Rows :

1

Insulation Material :

Polyamide (PA66), Nylon 6/6, Glass Filled

Plating Thickness :

40μin

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Contact Material :

Brass

Insulation Height :

0.352 8.94mm

Applications :

Automotive, General Purpose, Industrial

Pitch - Mating :

0.079 2.00mm

Factory Lead Time :

17 Weeks

Durability :

30 Cycles

Packaging :

Tray

Contact Type :

Male Pin

Termination :

Kinked Pin, Solder

Fastening Type :

Latch Lock

Connector Type :

Header

Polarization Key :

POLARIZED HOUSING

Number of Positions :

2

Style :

Board to Cable/Wire

Stack Height (Mating) :

13.45mm

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Contact Length - Mating :

0.144 3.66mm

Series :

MicroTPA 55755

Number of Positions Loaded :

All

Insulation Color :

Natural

Operating Temperature (Max) :

85°C

Mating Contact Pitch :

0.079 inch

Pbfree Code :

yes

Mounting Option 1 :

LOCKING

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
