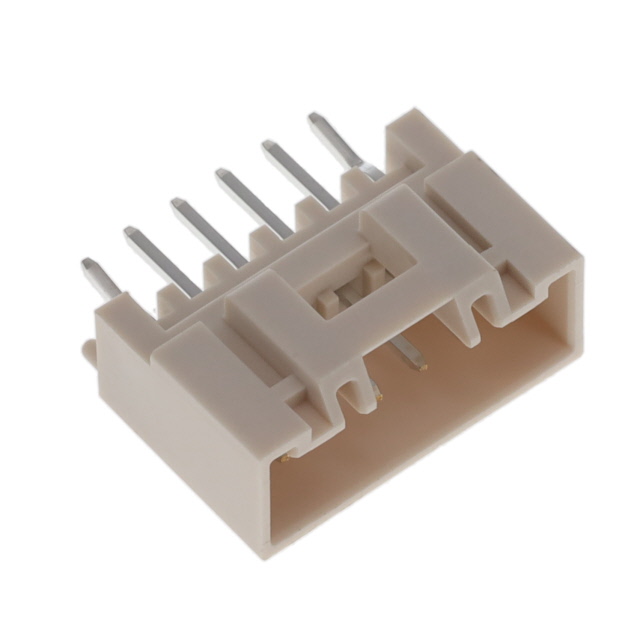

0557550619

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insulation Material :

Polyamide (PA66), Nylon 6/6, Glass Filled

Factory Lead Time :

20 Weeks

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Insulation Color :

Natural

Overall Contact Length :

0.437 11.10mm

MIL Conformance :

No

Pbfree Code :

yes

DIN Conformance :

No

Number of Circuits :

5

Contact Material :

Brass

Contact Length - Post :

0.130 3.30mm

Insulation Height :

0.352 8.94mm

Contact Shape :

Square

Stack Height (Mating) :

13.45mm

Pitch - Mating :

0.079 2.00mm

Mixed Contacts :

No

Termination :

Kinked Pin, Solder

Orientation :

Vertical

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

Feature :

Board Guide

Current Rating :

2.5A

Number of Positions :

6

Number of Rows :

1

Terminal Pitch :

2mm

RoHS Status :

ROHS3 Compliant

Connector Type :

Header

Packaging :

Tray

Series :

MicroTPA 55755

Additional Feature :

POLARIZED, SHROUDED

Applications :

Automotive, General Purpose, Industrial

Contact Length - Mating :

0.144 3.66mm

Filter Feature :

No

Mounting Type :

Through Hole

Mount :

Through Hole

JESD-609 Code :

e3

Number of Positions Loaded :

All

Contact Type :

Male Pin

Fastening Type :

Latch Lock

Style :

Board to Cable/Wire

Contact Finish - Mating :

Tin
