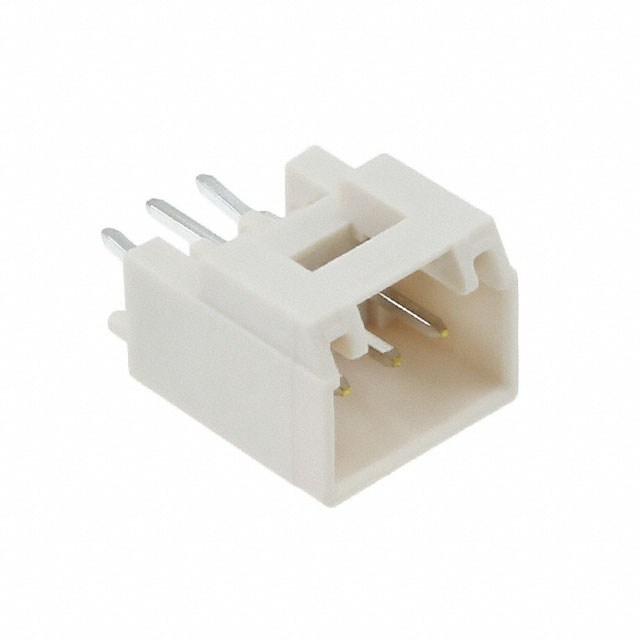

0557550319

Manufacturer :

Molex

Product Category :

Headers, Male Pins

MIL Conformance :

No

Contact Finish - Mating :

Tin

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polyamide (PA66), Nylon 6/6, Glass Filled

DIN Conformance :

No

Factory Lead Time :

25 Weeks

Mounting Type :

Through Hole

Packaging :

Tray

Overall Contact Length :

0.437 11.10mm

RoHS Status :

ROHS3 Compliant

Stack Height (Mating) :

13.45mm

Pbfree Code :

yes

Feature :

Board Guide

Shrouding :

Shrouded - 4 Wall

Insulation Color :

Natural

Fastening Type :

Latch Lock

Insulation Height :

0.352 8.94mm

Mixed Contacts :

No

Pitch - Mating :

0.079 2.00mm

Series :

MicroTPA 55755

Number of Positions :

3

Applications :

Automotive, General Purpose, Industrial

Contact Shape :

Square

Contact Material :

Brass

Number of Positions Loaded :

All

Number of Rows :

1

Contact Type :

Male Pin

Connector Type :

Header

Contact Length - Mating :

0.144 3.66mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Post :

0.130 3.30mm

JESD-609 Code :

e3

Additional Feature :

POLARIZED, SHROUDED

Terminal Pitch :

2mm

Style :

Board to Cable/Wire

Termination :

Kinked Pin, Solder

IEC Conformance :

No

Filter Feature :

No
