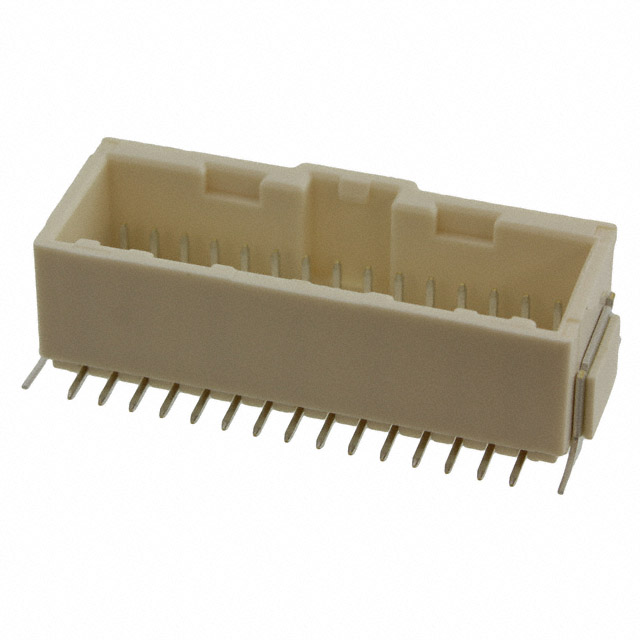

0557633070
Or copy the link below:
- Mfr.Part #
- 0557633070
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 30POS 2MM
- Stock
- 3,638
- In Stock ：
- 3,638
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Applications :
- General Purpose, Industrial, Medical
- Shrouding :
- Shrouded - 4 Wall
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Insulation Height :
- 0.398 10.11mm
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Termination :
- Solder
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Stack Height (Mating) :
- 14.15mm
- Series :
- MicroClasp 55763
- Contact Finish Thickness - Mating :
- 78.7μin 2.00μm
- Packaging :
- Cut Tape (CT)
- Mounting Type :
- Surface Mount
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Contact Material :
- Brass
- Connector Type :
- Header
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Natural
- Feature :
- Solder Retention
- Factory Lead Time :
- 21 Weeks
- Number of Positions :
- 30
- Fastening Type :
- Latch Holder
- Style :
- Board to Cable/Wire
- Datasheets
- 0557633070
0557633070 Documents
MicroClasp 55763 Series 2-Row Header Solder Brass Cut Tape (CT) Surface Mount Tin Polyamide (PA46), Nylon 4/6 30-Position Board to Cable/Wire 0.398 10.11mm Height
0557633070 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Cut Tape (CT).Product number MicroClasp 55763 belongs to the MicroClasp 55763 Series.In addition to General Purpose, Industrial, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.
0557633070 Features
MicroClasp 55763 series
0557633070 Applications
There are a lot of Molex
0557633070 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
