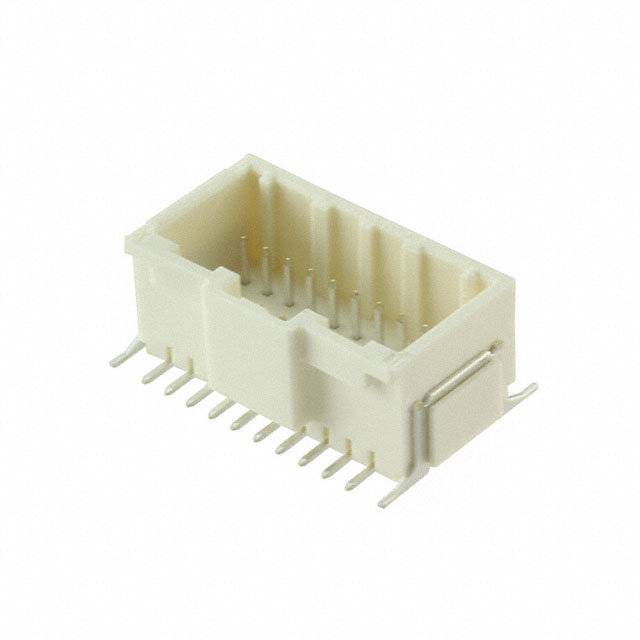

0557632070
Or copy the link below:
- Mfr.Part #
- 0557632070
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 2MM
- Stock
- 44,038
- In Stock ：
- 44,038
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Surface Mount
- Pbfree Code :
- yes
- Insulation Color :
- Natural
- Series :
- MicroClasp 55763
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Style :
- Board to Cable/Wire
- Stack Height (Mating) :
- 14.15mm
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.079 2.00mm
- Contact Shape :
- Square
- Insulation Height :
- 0.398 10.11mm
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Termination :
- Solder
- Applications :
- General Purpose, Industrial, Medical
- Factory Lead Time :
- 21 Weeks
- Feature :
- Solder Retention
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Contact Material :
- Brass
- Fastening Type :
- Latch Holder
- Contact Finish Thickness - Mating :
- 78.7μin 2.00μm
- Number of Positions :
- 20
- Datasheets
- 0557632070
MicroClasp 55763 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA46), Nylon 4/6 20-Position Board to Cable/Wire 0.398 10.11mm Height
0557632070 Overview
Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the MicroClasp 55763 Series.There are a variety of possible applications for this device, including General Purpose, Industrial, Medical.Several benefits come from the Solder Retention feature.
0557632070 Features
MicroClasp 55763 series
0557632070 Applications
There are a lot of Molex
0557632070 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
