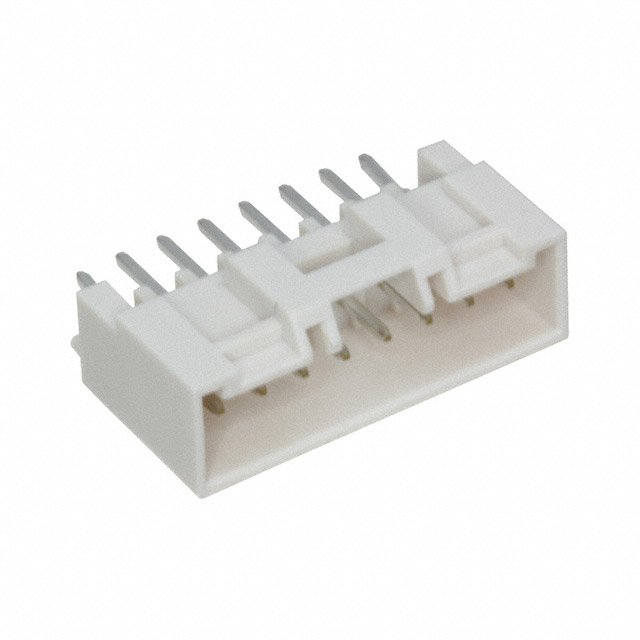

0557550819

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insulation Color :

Natural

Number of Positions Loaded :

All

Contact Length - Post :

0.130 3.30mm

Applications :

Automotive, General Purpose, Industrial

Packaging :

Tray

Contact Material :

Brass

Fastening Type :

Latch Lock

Material Flammability Rating :

UL94 V-0

Number of Rows :

1

Style :

Board to Cable/Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

POLARIZED, SHROUDED

Factory Lead Time :

20 Weeks

Current Rating :

2.5A

Mixed Contacts :

No

Series :

MicroTPA 55755

Termination :

Kinked Pin, Solder

Contact Finish - Mating :

Tin

Terminal Pitch :

2mm

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Number of Circuits :

7

Insulation Material :

Polyamide (PA66), Nylon 6/6, Glass Filled

Stack Height (Mating) :

13.45mm

Number of Positions :

8

Insulation Height :

0.352 8.94mm

Shrouding :

Shrouded - 4 Wall

JESD-609 Code :

e3

IEC Conformance :

No

Contact Type :

Male Pin

Pbfree Code :

yes

Orientation :

Vertical

Connector Type :

Header

DIN Conformance :

No

Feature :

Board Guide

Contact Shape :

Square

MIL Conformance :

No

Contact Length - Mating :

0.144 3.66mm

Pitch - Mating :

0.079 2.00mm

Mount :

Through Hole

Overall Contact Length :

0.437 11.10mm
