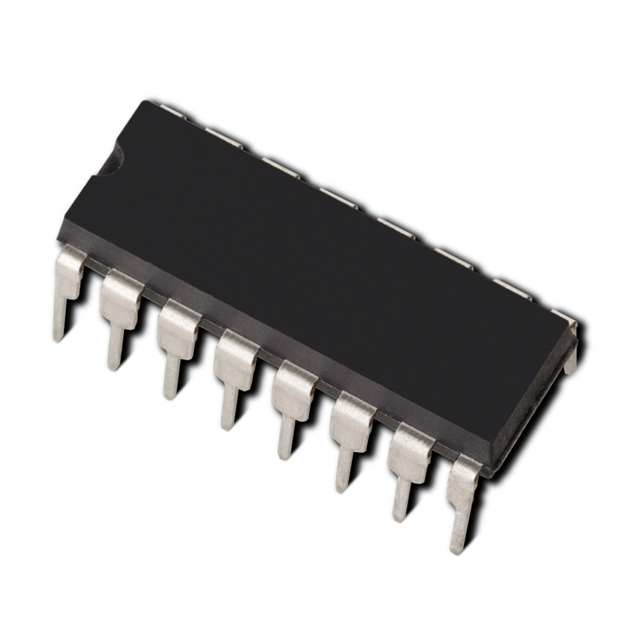

SD5000N PDIP 16L

Manufacturer :

Linear Integrated Systems, Inc.

Product Category :

Transistors - FETs, MOSFETs - Arrays

Configuration :

4 N-Channel

Input Capacitance (Ciss) (Max) @ Vds :

-

FET Type :

4 N-Channel

Product Status :

Active

Package :

Tube

Power - Max :

500mW (Ta)

Series :

-

Gate Charge (Qg) (Max) @ Vgs :

-

Drain to Source Voltage (Vdss) :

20V

Supplier Device Package :

16-DIP

Vgs(th) (Max) @ Id :

1.5V @ 1µA

Operating Temperature :

-55°C ~ 150°C (TJ)

Mounting Type :

Through Hole

Current - Continuous Drain (Id) @ 25°C :

50mA (Ta)

Package / Case :

16-DIP (0.300, 7.62mm)

Technology :

MOSFET (Metal Oxide)

Base Product Number :

SD5000

FET Feature :

-

Rds On (Max) @ Id, Vgs :

70Ohm @ 1mA, 5V
