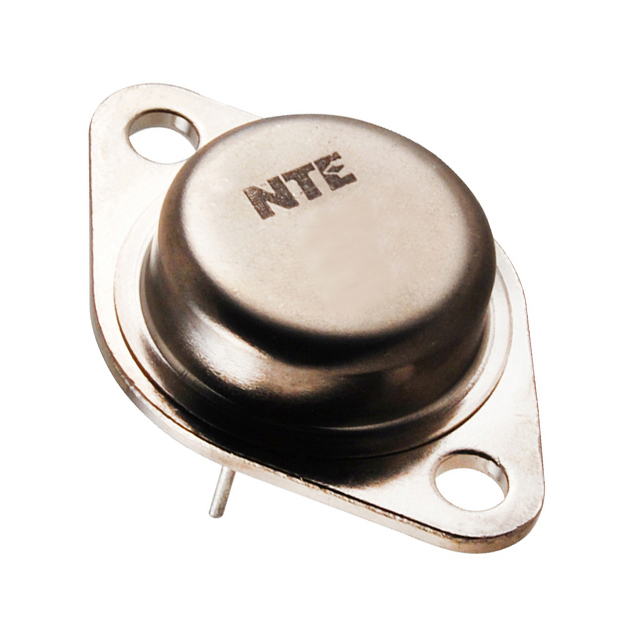

MJ15003
Or copy the link below:
- Mfr.Part #
- MJ15003
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-204AA, TO-3
- Datasheet
- Download
- Description
- TRANS NPN 140V 20A TO204
- Stock
- 73
- In Stock ：
- 73
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Factory Lead Time :
- 5 Weeks
- Vce Saturation (Max) @ Ib, Ic :
- 1V @ 500mA, 5A
- Height :
- 8.51mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Transistor Element Material :
- SILICON
- Max Collector Current :
- 20A
- Collector Base Voltage (VCBO) :
- 140V
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tray
- Emitter Base Voltage (VEBO) :
- 5V
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 25 @ 5A 2V
- Transistor Type :
- NPN
- Collector Emitter Breakdown Voltage :
- 140V
- REACH SVHC :
- No SVHC
- Number of Terminations :
- 2
- hFE Min :
- 25
- Current - Collector Cutoff (Max) :
- 250μA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pin Count :
- 2
- Operating Temperature :
- -65°C~200°C TJ
- Pbfree Code :
- yes
- Weight :
- 4.535924g
- Contact Plating :
- Tin
- Transistor Application :
- AMPLIFIER
- Radiation Hardening :
- No
- Element Configuration :
- Single
- ECCN Code :
- EAR99
- Surface Mount :
- No
- Voltage - Rated DC :
- 140V
- Collector Emitter Voltage (VCEO) :
- 140V
- Current Rating :
- 20A
- Width :
- 26.67mm
- Case Connection :
- COLLECTOR
- Published :
- 2002
- Number of Pins :
- 2
- Number of Elements :
- 1
- Polarity/Channel Type :
- NPN
- Gain Bandwidth Product :
- 2MHz
- Mounting Type :
- Through Hole
- Collector Emitter Saturation Voltage :
- 1V
- Package / Case :
- TO-204AA, TO-3
- Lead Free :
- Lead Free
- Length :
- 39.37mm
- Power Dissipation :
- 250W
- Terminal Position :
- BOTTOM
- Peak Reflow Temperature (Cel) :
- 260
- Transition Frequency :
- 2MHz
- Terminal Form :
- PIN/PEG
- JESD-609 Code :
- e3
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Frequency :
- 2MHz
- Max Power Dissipation :
- 250W
- Datasheets
- MJ15003
MJ15003 Documents
NPN -65°C~200°C TJ 250μA 1 Elements 2 Terminations SILICON NPN TO-204AA, TO-3 Tray Through Hole
MJ15003G Description
Power transistors like the MJ15003G are used in high-power audio, disk head positioners, and other linear applications.
MJ15003G Features
? Area of Extremely Safe Operation
? Complementary Designs with Low Distortion
? DC Current Gain is High
? These devices are RoHS compliant and free of lead.
MJ15003G Applications
Switching applications
