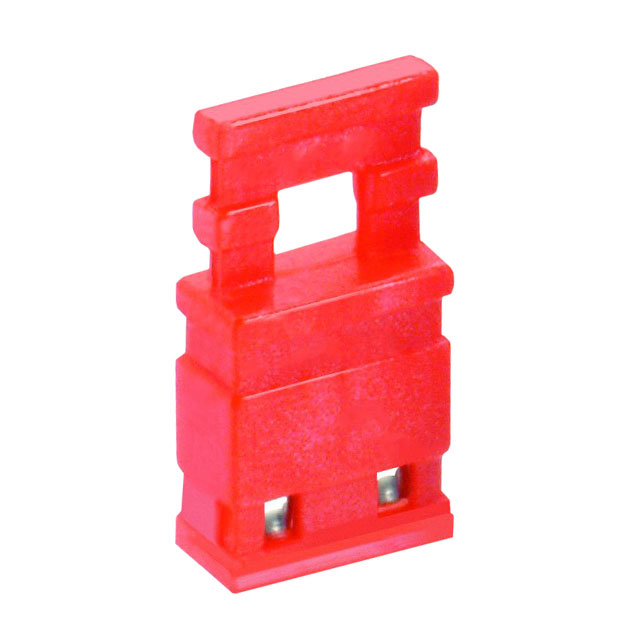

M7685-46

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Factory Lead Time :

13 Weeks

Pbfree Code :

yes

Additional Feature :

RoHS Compliant

Contact Gender :

FEMALE

JESD-609 Code :

e3

Current Rating :

3A

Series :

M76

Total Number of Contacts :

2

Mounting Option 1 :

LOCKING

Body/Shell Style :

PLUG

Reliability :

COMMERCIAL

Mounting Style :

Straight

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Rated Current (Signal) :

3A

RoHS Status :

ROHS3 Compliant

Contact Material :

Bronze

Contact Finish Thickness :

118.1μin 3.00μm

Reference Standard :

UL

Color :

Red

Number of Rows :

1

Pitch :

0.100 2.54mm

Contact Pattern :

RECTANGULAR

Number of Positions :

2

Max Operating Temperature :

85°C

Voltage - Rated :

250V

Number of Positions or Pins (Grid) :

2 (1 x 2)

Body Breadth :

0.094 inch

Material Flammability Rating :

UL94 V-0

Contact Style :

BELLOWED TYPE

Packaging :

Bulk

Housing Material :

Polyester

Gender :

Female Sockets

Type :

Closed Top, Grip

Contact Finish :

Tin

Contact Resistance :

30mOhm

Height :

0.394 10.00mm

ECCN Code :

EAR99

Durability :

50 Cycles

Min Operating Temperature :

-40°C

Insulation Resistance :

1GOhm

Published :

2013

Body Depth :

0.394 inch
