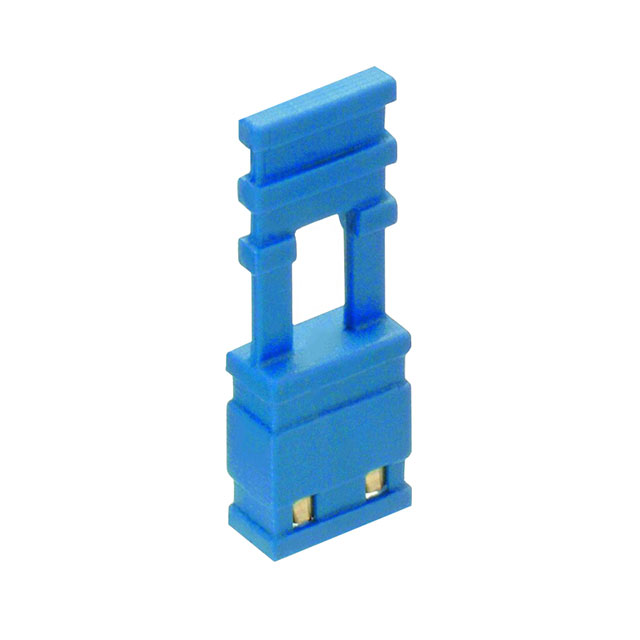

M7683-46

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Housing Material :

Polyester

Voltage - Rated :

250V

RoHS Status :

ROHS3 Compliant

Pitch :

0.100 2.54mm

Number of Conductors :

ONE

Type :

Closed Top, Grip

Packaging :

Bulk

Reliability :

COMMERCIAL

Contact Style :

BELLOWED TYPE

Additional Feature :

RoHS Compliant

Color :

Blue

Body Breadth :

0.094 inch

JESD-609 Code :

e3

Operating Temperature (Min) :

-40°C

Radiation Hardening :

No

Number of Positions or Pins (Grid) :

2 (1 x 2)

Current Rating (Amps) :

3A

Operating Temperature (Max) :

85°C

Contact Finish Thickness :

118.1μin 3.00μm

Factory Lead Time :

9 Weeks

Depth :

14mm

Orientation :

Straight

Contact Pattern :

RECTANGULAR

Series :

M76

Contact Resistance :

30mOhm

Reference Standard :

UL

Contact Material :

Phosphor Bronze

Number of Rows :

1

Pbfree Code :

yes

Published :

2013

Durability :

50 Cycles

Contact Finish :

Tin

Number of Contacts :

2

Material Flammability Rating :

UL94 V-0

Length :

5mm

Height :

0.551 14.00mm

Body/Shell Style :

PLUG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Female Sockets
