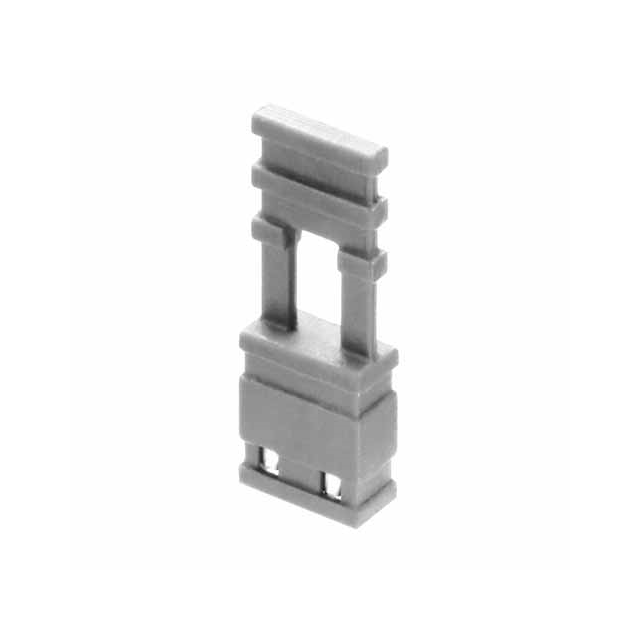

M7680-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Max Voltage Rating (AC) :

250V

Packaging :

Bulk

Contact Finish :

Gold

Number of Positions or Pins (Grid) :

2 (1 x 2)

Published :

2005

RoHS Status :

ROHS3 Compliant

Body Breadth :

0.094 inch

Gender :

Female Sockets

Min Operating Temperature :

-40°C

Body/Shell Style :

PLUG

Max Operating Temperature :

85°C

Length :

5mm

Pbfree Code :

yes

JESD-609 Code :

e4

Contact Resistance :

25mOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

66 Weeks

Reference Standard :

UL

Number of Rows :

1

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Contact Style :

BELLOWED TYPE

Insulation Resistance :

1GOhm

Max Current Rating :

3A

Series :

M76

Contact Finish Thickness :

5.11μin 0.130μm

Contact Material :

Bronze

ECCN Code :

EAR99

Height :

0.551 14.00mm

Pitch :

0.100 2.54mm

Color :

Gray

Type :

Closed Top, Grip

Depth :

2.4mm

Durability :

300 Cycles

Housing Color :

Grey

Reliability :

COMMERCIAL

Total Number of Contacts :

2

Plating Thickness :

5μin

Contact Pattern :

RECTANGULAR

Orientation :

Straight

Housing Material :

Polyester

Rated Current (Signal) :

3A

Dielectric Withstanding Voltage :

250VAC V
