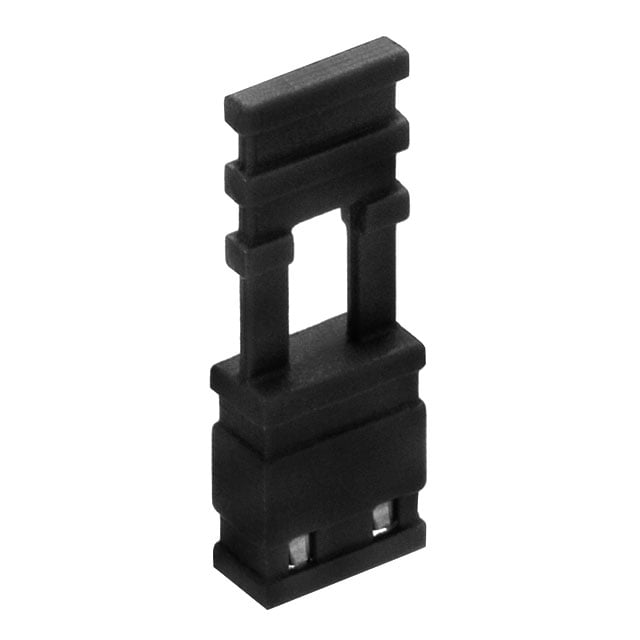

M7682-46

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Published :

2013

Contact Material :

Bronze

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Insulation :

Insulated

Pitch :

0.100 2.54mm

Body Depth :

0.551 inch

Color :

Black

Voltage - Rated :

250V

Plating Thickness :

118μin

Contact Finish :

Tin

Contact Resistance :

30mOhm

Rated Current (Signal) :

3A

Gender :

Female Sockets

Flammability Rating :

UL94 V-0

Current Rating :

3A

Body/Shell Style :

PLUG

Series :

M76

Additional Feature :

RoHS Compliant

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

85°C

Factory Lead Time :

13 Weeks

Contact Finish Thickness :

118.1μin 3.00μm

Reliability :

COMMERCIAL

Number of Positions :

2

Pbfree Code :

yes

Number of Positions or Pins (Grid) :

2 (1 x 2)

Type :

Closed Top, Grip

Insulation Resistance :

1GOhm

Packaging :

Bulk

Contact Style :

BELLOWED TYPE

Height :

0.551 14.00mm

JESD-609 Code :

e3

Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Body Breadth :

0.094 inch

Mount :

Socket

Body Length or Diameter :

0.197 inch

Housing Material :

Polyester

Total Number of Contacts :

2

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Durability :

50 Cycles

Min Operating Temperature :

-40°C
