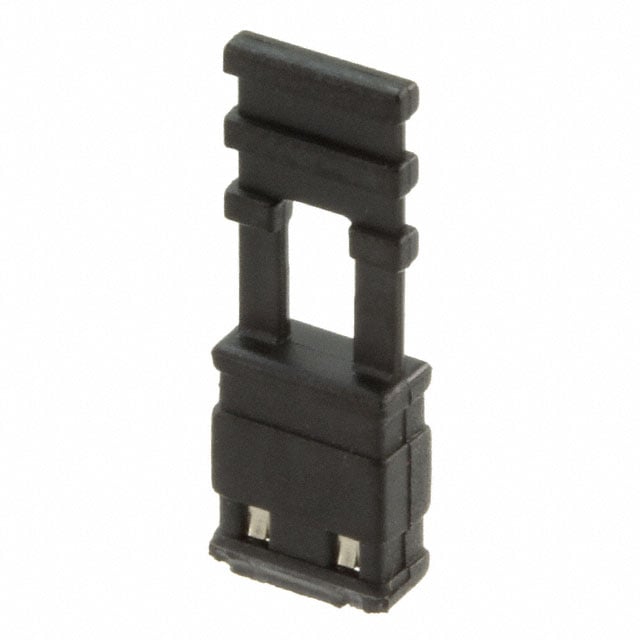

M7682-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Number of Conductors :

ONE

Packaging :

Bulk

Color :

Black

Plating Thickness :

5μin

Voltage - Rated DC :

250V

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness :

5.11μin 0.130μm

Material Flammability Rating :

UL94 V-0

Min Operating Temperature :

-40°C

Flammability Rating :

UL94 V-0

Contact Resistance :

3mOhm

Gender :

Female Sockets

Number of Contacts :

2

Rated Current (Signal) :

3A

Max Operating Temperature :

85°C

Series :

M76

Depth :

2.4mm

Durability :

300 Cycles

Height :

0.551 14.00mm

Max Current Rating :

3A

Housing Material :

Polyester

Weight :

28.349523g

Contact Pattern :

RECTANGULAR

REACH SVHC :

No SVHC

Contact Gender :

FEMALE

JESD-609 Code :

e4

Body Breadth :

0.094 inch

Max Voltage Rating (AC) :

250V

Orientation :

Straight

Reference Standard :

UL

Pbfree Code :

yes

Type :

Closed Top, Grip

Insulation Resistance :

1GOhm

Radiation Hardening :

No

Number of Positions or Pins (Grid) :

2 (1 x 2)

Current Rating :

3A

Length :

14mm

Contact Finish :

Gold

Contact Style :

BELLOWED TYPE

Contact Material :

Bronze

Body/Shell Style :

PLUG

Factory Lead Time :

13 Weeks

Lead Pitch :

2.54mm

Published :

2006

Width :

5mm

Number of Rows :

1

Pitch :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Voltage - Rated AC :

250V
