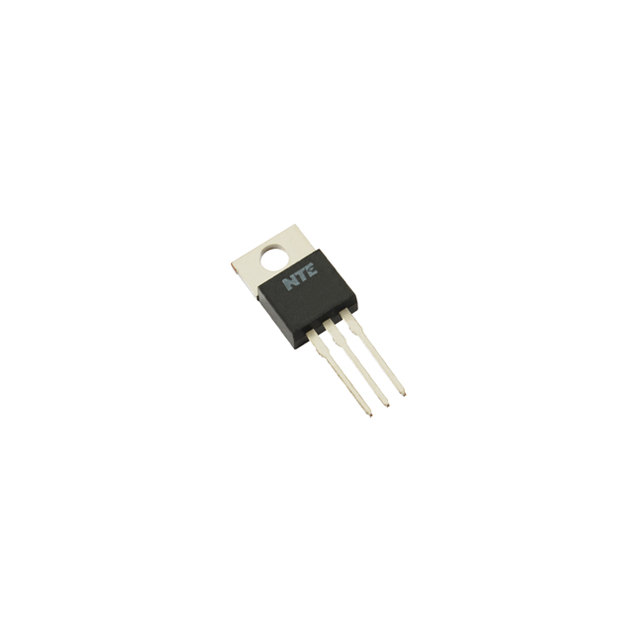

BD912
Or copy the link below:
- Mfr.Part #
- BD912
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-220-3
- Datasheet
- Download
- Description
- TRANS PNP 100V 15A TO220
- Stock
- 14,522
- In Stock ：
- 14,522
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Number of Terminations :
- 3
- Collector Base Voltage (VCBO) :
- 100V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Collector Emitter Breakdown Voltage :
- 100V
- Transistor Type :
- PNP
- hFE Min :
- 15
- Current Rating :
- -15A
- Transistor Application :
- SWITCHING
- Package / Case :
- TO-220-3
- Max Power Dissipation :
- 90W
- Number of Elements :
- 1
- JESD-609 Code :
- e3
- Element Configuration :
- Single
- Length :
- 10.4mm
- Height :
- 9.15mm
- Mounting Type :
- Through Hole
- Power Dissipation :
- 90W
- Lifecycle Status :
- ACTIVE (Last Updated: 8 months ago)
- Transition Frequency :
- 3MHz
- VCEsat-Max :
- 3 V
- Width :
- 4.6mm
- Gain Bandwidth Product :
- 3MHz
- Emitter Base Voltage (VEBO) :
- 5V
- JEDEC-95 Code :
- TO-220AB
- Collector Emitter Voltage (VCEO) :
- 100V
- Mount :
- Through Hole
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 15 @ 5A 4V
- Weight :
- 4.535924g
- Operating Temperature :
- 150°C TJ
- Pin Count :
- 3
- Contact Plating :
- Tin
- REACH SVHC :
- No SVHC
- Vce Saturation (Max) @ Ib, Ic :
- 3V @ 2.5A, 10A
- Lead Free :
- Lead Free
- Max Collector Current :
- 15A
- Collector Emitter Saturation Voltage :
- 3V
- Packaging :
- Tube
- Current - Collector Cutoff (Max) :
- 1mA
- RoHS Status :
- ROHS3 Compliant
- Radiation Hardening :
- No
- Base Part Number :
- BD912
- ECCN Code :
- EAR99
- Factory Lead Time :
- 8 Weeks
- Frequency :
- 3MHz
- Number of Pins :
- 3
- Polarity/Channel Type :
- PNP
- Transistor Element Material :
- SILICON
- Voltage - Rated DC :
- -100V
- Datasheets
- BD912
BD912 Documents
PNP 150°C TJ 1mA 1 Elements 3 Terminations SILICON PNP TO-220-3 Tube Through Hole
BD912 Overview
This device has a DC current gain of 15 @ 5A 4V, which is the ratio between the collector current and the base current.A collector emitter saturation voltage of 3V allows maximum design flexibility.A VCE saturation indicates a maximum value of Ic (saturation), and a maximum value of VCE saturation (Max).The base voltage of the emitter can be kept at 5V to achieve high efficiency.Normally, a fuse's current rating refers to how much current it can carry without deteriorating too much, which in this case is -15A.In this part, there is a transition frequency of 3MHz.The maximum collector current is 15A volts.
BD912 Features
the DC current gain for this device is 15 @ 5A 4V
a collector emitter saturation voltage of 3V
the vce saturation(Max) is 3V @ 2.5A, 10A
the emitter base voltage is kept at 5V
the current rating of this device is -15A
a transition frequency of 3MHz
BD912 Applications
There are a lot of STMicroelectronics
BD912 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
