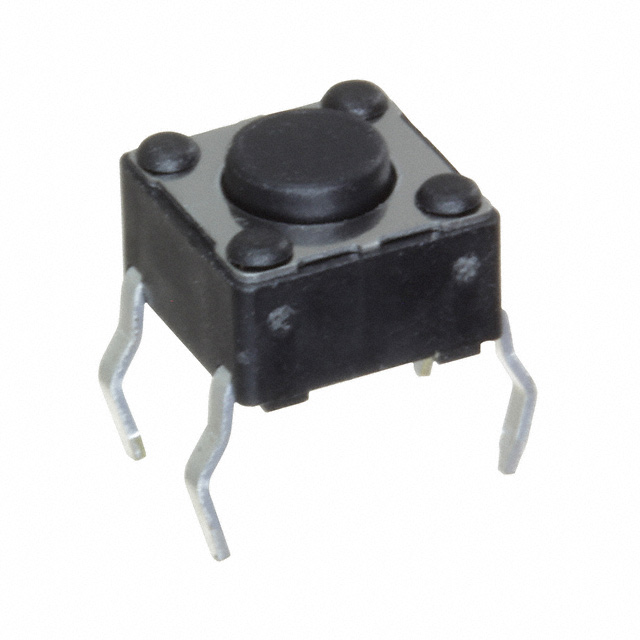

ADTS61KV

Manufacturer :

APEM Inc.

Product Category :

Actuator Type :

Standard

Actuator Orientation :

Top Actuated

Length - Termination :

0.138 inch

Operating Force :

100gf

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Silver (Ag)

Actuator Material :

Polyamide (PA), Nylon

Actuator Height off PCB, Vertical :

4.30mm

Housing Material :

Stainless Steel

Orientation :

Straight

Actuator Length :

800μm

Illumination :

Non-Illuminated

Operating Temperature :

-25°C~70°C

Termination :

PC Pin

Electrical Life :

200000 Cycles

Mount :

Through Hole

JESD-609 Code :

e4

Outline :

6.20mm x 6.20mm

Termination Style :

PC Pin

Body Breadth :

6 mm

Insulation Resistance :

100000000Ohm

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.50.90.40

Contact Current(DC)-Max :

0.05A

Circuit :

SPST-NO

ECCN Code :

EAR99

Feature :

Tactile Feedback

Packaging :

Bulk

Number of Switches :

1

Throw Configuration :

SPST

Actuator Color :

Black

Contact Material :

Bronze, Silver

Body Length or Diameter :

6mm

Terminal Material :

Brass

Mounting Type :

Through Hole

Series :

ADTS

Contact (DC) Max Rating R Load :

.05A@12VDC

Factory Lead Time :

8 Weeks

PCB Hole Count :

4

Body Color :

Black

Contact Rating @ Voltage :

0.05A @ 12VDC

Insulation Material :

Thermoplastic

Switch Type :

KEYPAD SWITCH

Max Voltage Rating (DC) :

12V

Switch Travel :

0.25mm

Dielectric Withstanding Voltage :

250VAC V

Body Height :

3.5mm

Contact Resistance :

100MOhm

Switch Function :

Off-Mom
