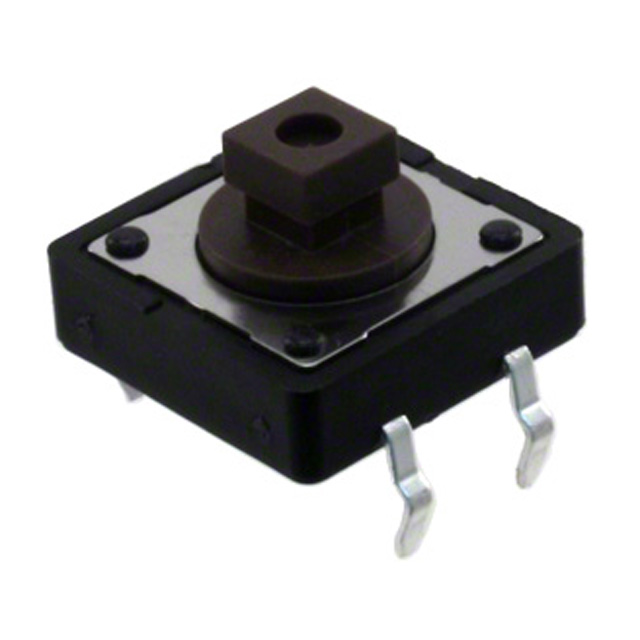

ADTS24NV
Or copy the link below:
- Mfr.Part #
- ADTS24NV
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 4,331
- In Stock ：
- 4,331
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- RoHS Status :
- ROHS3 Compliant
- Color :
- Brown
- Actuator Length :
- 3.8mm
- Termination :
- PC Pin
- Body Height :
- 3.5mm
- Body Breadth :
- 12 mm
- Feature :
- Tactile Feedback
- Contact Plating :
- Silver
- Series :
- ADTS
- Switch Travel :
- 0.35mm
- Mount :
- Through Hole
- Insulation Resistance :
- 100000000Ohm
- Actuator Material :
- Polyamide (PA), Nylon
- Orientation :
- Straight
- Voltage - Rated DC :
- 12V
- ECCN Code :
- EAR99
- Operating Temperature :
- -25°C~70°C
- PCB Hole Count :
- 4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Max Voltage Rating (DC) :
- 12V
- JESD-609 Code :
- e4
- Termination Style :
- PC Pin
- Terminal Material :
- Brass
- Electrical Life :
- 200000 Cycles
- Outline :
- 12.00mm x 12.00mm
- Factory Lead Time :
- 8 Weeks
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Current Rating :
- 50mA
- Switch Type :
- KEYPAD SWITCH
- Operating Force :
- 160gf
- Contact Current(DC)-Max :
- 0.05A
- HTS Code :
- 8536.50.90.40
- Housing Material :
- Stainless Steel
- Contact Material :
- Bronze, Silver
- Length - Termination :
- 0.138 inch
- Switch Function :
- Off-Mom
- Contact Resistance :
- 100MOhm
- Illumination :
- Non-Illuminated
- Insulation Material :
- Thermoplastic
- Actuator Orientation :
- Top Actuated
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Number of Switches :
- 1
- Dielectric Withstanding Voltage :
- 250VAC V
- Actuator Type :
- Plunger for Cap
- Throw Configuration :
- SPST
- Body Length or Diameter :
- 12mm
- Actuator Height off PCB, Vertical :
- 7.30mm
- Mounting Type :
- Through Hole
- Circuit :
- SPST-NO
- Datasheets
- ADTS24NV
