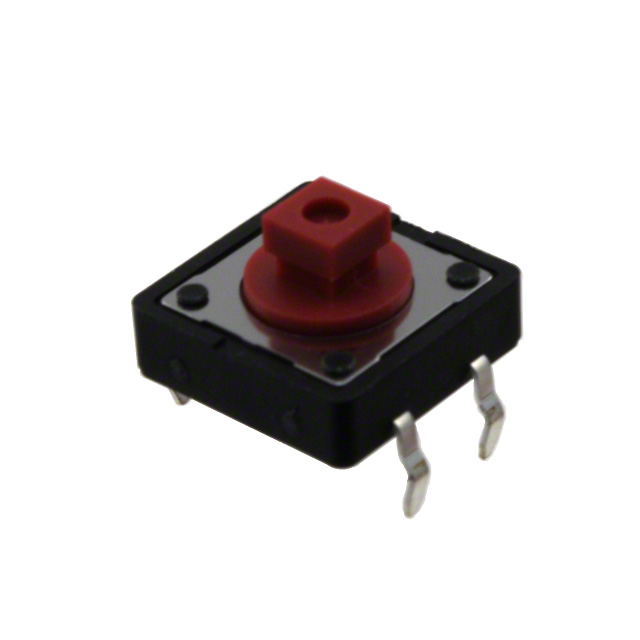

ADTS24RV

Share

Or copy the link below:

Mfr.Part #
ADTS24RV
Manufacturer
APEM Inc.
Package / Case
Datasheet
Download
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Stock
628
In Stock :
628

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
APEM Inc.
Product Category :
Body Length or Diameter :
12mm
Electrical Life :
100000 cycles
Actuator Orientation :
Top Actuated
Outline :
12.00mm x 12.00mm
ECCN Code :
EAR99
Packaging :
Bulk
Illumination :
Non-Illuminated
Actuator Color :
Red
HTS Code :
8536.50.90.40
Voltage - Rated DC :
12V
JESD-609 Code :
e4
Insulation Resistance :
100000000Ohm
Series :
ADTS
Actuator Height off PCB, Vertical :
7.30mm
Actuator Type :
Plunger for Cap
Max Voltage Rating (DC) :
12V
Mount :
Through Hole
Current Rating :
50mA
Terminal Finish :
Silver (Ag)
Switch Travel :
0.35mm
Body Breadth :
12 mm
Contact Current(DC)-Max :
0.05A
Termination :
PC Pin
Body Color :
Black
Terminal Material :
Brass
RoHS Status :
ROHS3 Compliant
Contact (DC) Max Rating R Load :
.05A@12VDC
Feature :
Tactile Feedback
Actuator Material :
Polyamide (PA), Nylon
Actuator Length :
3.8mm
Termination Style :
PC Pin
Contact Rating @ Voltage :
0.05A @ 12VDC
PCB Hole Count :
4
Throw Configuration :
SPST
Mounting Type :
Through Hole
Operating Force :
260gf
Orientation :
Straight
Switch Function :
Off-Mom
Dielectric Withstanding Voltage :
250VAC V
Operating Temperature :
-25°C~70°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Factory Lead Time :
8 Weeks
Insulation Material :
Thermoplastic
Contact Material :
Bronze, Silver
Circuit :
SPST-NO
Housing Material :
Stainless Steel
Number of Switches :
1
Body Height :
3.5mm
Length - Termination :
0.138 inch
Switch Type :
KEYPAD SWITCH
Contact Resistance :
100MOhm
Introducing APEM Inc. ADTS24RV from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-25°C~70°C, Circuit:SPST-NO, ADTS24RV pinout, ADTS24RV datasheet PDF, ADTS24RV amp .Beyond APEM Inc. ADTS24RV ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

APEM Inc. ADTS24RV


ADTS24RV datasheet pdf and Tactile Switches product details from APEM Inc. stock available at
