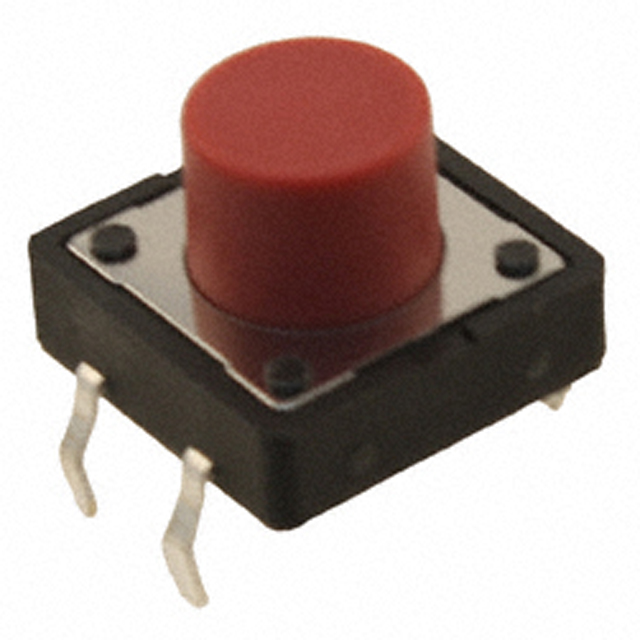

ADTS25RV

Manufacturer :

APEM Inc.

Product Category :

Outline :

12.00mm x 12.00mm

Center Contact Material :

Phosphor Bronze

Factory Lead Time :

8 Weeks

Terminal Material :

Brass

Body Length or Diameter :

12mm

Mounting Type :

Through Hole

Illumination :

Non-Illuminated

Operating Force :

260gf

Switch Type :

KEYPAD SWITCH

Insulation Material :

Thermoplastic

Body Color :

Black

End Contact Plating :

Silver

Insulation Resistance :

100000000Ohm

Dielectric Withstanding Voltage :

250VAC V

Actuator Length :

0.197 inch

RoHS Status :

ROHS3 Compliant

Series :

ADTS

Circuit :

SPST-NO

Actuator Type :

Standard

Terminal Finish :

Silver (Ag)

JESD-609 Code :

e4

Contact Rating @ Voltage :

0.05A @ 12VDC

Operating Temperature :

-25°C~70°C

HTS Code :

8536.50.90.40

Contact Current(DC)-Max :

0.05A

Body Breadth :

12 mm

Mount :

Through Hole

Switch Function :

Off-Mom

End Contact Material :

Phosphor Bronze

Actuator Orientation :

Top Actuated

Actuator Material :

Polyamide (PA), Nylon

Housing Material :

Stainless Steel

Center Contact Plating :

Silver

Contact (DC) Max Rating R Load :

.05A@12VDC

Contact Resistance :

0.1mOhm

ECCN Code :

EAR99

Packaging :

Bulk

Body Height :

3.5mm

Actuator Color :

Red

Switch Travel :

0.35mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Switches :

1

Actuator Height off PCB, Vertical :

8.50mm

Electrical Life :

100000 Cycle(s)

PCB Hole Count :

4

Termination Style :

PC Pin

Termination :

PC Pin

Throw Configuration :

SPST

Feature :

Tactile Feedback

Length - Termination :

0.138 inch
