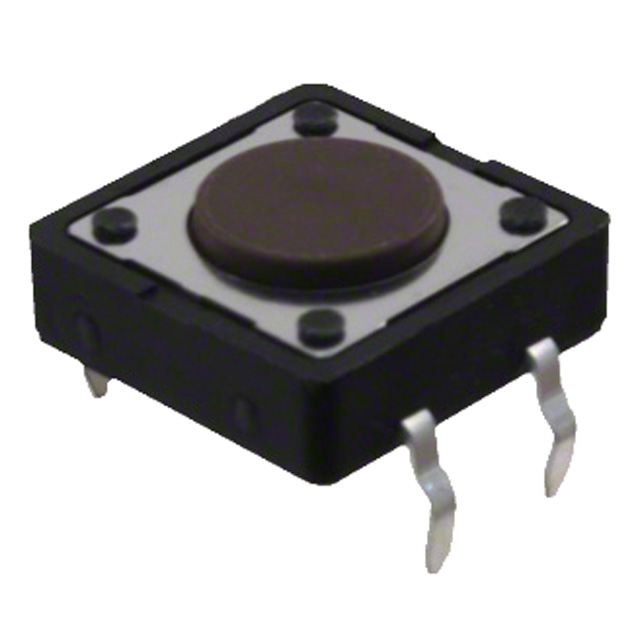

ADTS21NV

Share

Or copy the link below:

Mfr.Part #
ADTS21NV
Manufacturer
APEM Inc.
Package / Case
Datasheet
Download
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Stock
1,029
In Stock :
1,029

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
APEM Inc.
Product Category :
Actuator Length :
800μm
Actuator Material :
Polyamide (PA), Nylon
RoHS Status :
ROHS3 Compliant
Operating Force :
160gf
Mounting Type :
Through Hole
Number of Switches :
1
Contact (DC) Max Rating R Load :
.05A@12VDC
Packaging :
Bulk
Terminal Material :
Brass
Contact Current(DC)-Max :
0.05A
Contact Resistance :
100MOhm
JESD-609 Code :
e4
Contact Material :
Bronze, Silver
Termination :
PC Pin
Circuit :
SPST-NO
Max Voltage Rating (DC) :
12V
Body Color :
Black
Actuator Type :
Standard
Switch Function :
Off-Mom
Mount :
Through Hole
Electrical Life :
200000 Cycles
Throw Configuration :
SPST
Operating Temperature :
-25°C~70°C
Body Length or Diameter :
12mm
Insulation Material :
Thermoplastic
Terminal Finish :
Silver (Ag)
Dielectric Withstanding Voltage :
250VAC V
Orientation :
Straight
Contact Rating @ Voltage :
0.05A @ 12VDC
Factory Lead Time :
8 Weeks
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Switch Travel :
0.35mm
Outline :
12.00mm x 12.00mm
Length - Termination :
0.138 inch
Actuator Height off PCB, Vertical :
4.30mm
Actuator Orientation :
Top Actuated
Illumination :
Non-Illuminated
Housing Material :
Stainless Steel
Body Breadth :
12 mm
Actuator Color :
Brown
Body Height :
3.5mm
Termination Style :
PC Pin
Series :
ADTS
Insulation Resistance :
100000000Ohm
Switch Type :
KEYPAD SWITCH
ECCN Code :
EAR99
PCB Hole Count :
4
HTS Code :
8536.50.90.40
Feature :
Tactile Feedback
Introducing APEM Inc. ADTS21NV from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Circuit:SPST-NO, Operating Temperature:-25°C~70°C, ADTS21NV pinout, ADTS21NV datasheet PDF, ADTS21NV amp .Beyond APEM Inc. ADTS21NV ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

APEM Inc. ADTS21NV


ADTS21NV datasheet pdf and Tactile Switches product details from APEM Inc. stock available at
