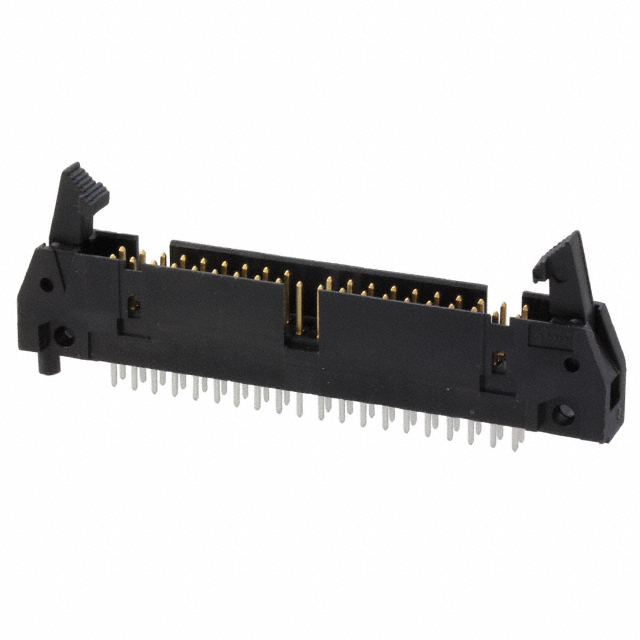

6489700-1
Or copy the link below:
- Mfr.Part #
- 6489700-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 40POS 2.54MM
- Stock
- 191
- In Stock ：
- 191
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Gender :
- Male
- Contact Type :
- Male Pin
- Feature :
- Keying Slot, Mounting Flange
- Height :
- 13.94mm
- Contact Finish - Post :
- Tin
- Plating Thickness :
- 2.54μm
- Mount :
- Through Hole
- Number of Positions Loaded :
- 39
- Factory Lead Time :
- 23 Weeks
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Published :
- 2010
- Number of Rows :
- 2
- Current Rating (Amps) :
- 1A per Contact
- Circuit Application :
- Signal
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.549 13.94mm
- Series :
- AMP-Latch
- Contact Length - Mating :
- 0.240 6.10mm
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Resistance :
- 5GOhm
- Current Rating :
- 1A
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Material Flammability Rating :
- UL94 V-0
- Overall Contact Length :
- 0.651 16.53mm
- Length :
- 70.104mm
- Contact Length - Post :
- 0.122 3.10mm
- Shrouded End Dimension :
- 3.81 mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- ELV :
- Compliant
- Insulation Material :
- Polyester, Glass Filled
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Current Rating :
- 1A
- Fastening Type :
- Latch Lock/Eject Hooks
- Insulation Color :
- Black
- Number of Positions :
- 40
- Contact Material :
- Phosphor Bronze
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Bulk
- Operating Temperature :
- -65°C~105°C
- Operating Supply Voltage :
- 250V
- Connector Type :
- Header
- Housing Material :
- Glass
- Mating Connector Lock :
- With
- Voltage - Rated :
- 250VAC
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Orientation :
- Vertical
- Lead Length :
- 3.1242mm
- Contact Plating :
- Gold, Tin
- Mounting Type :
- Through Hole
- PCB Mount Retention :
- Without
- Datasheets
- 6489700-1
AMP-Latch Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold or Gold-Palladium Polyester, Glass Filled 40-Position Board to Cable/Wire 0.549 13.94mm Height
6489700-1 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMP-Latch Series.There are a number of advantages to its Keying Slot, Mounting Flange feature.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -65°C~105°C Operating Temperature.
6489700-1 Features
AMP-Latch series
6489700-1 Applications
There are a lot of TE Connectivity AMP Connectors
6489700-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
