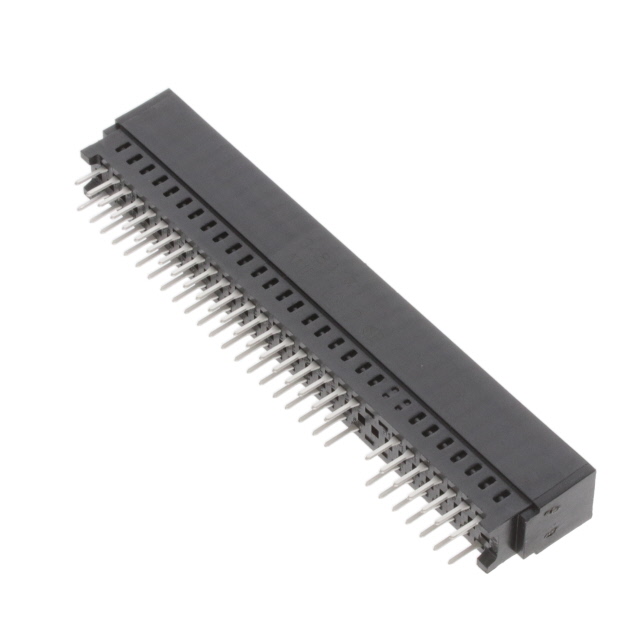

6489170-1
Or copy the link below:
- Mfr.Part #
- 6489170-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 60POS 0.100
- Stock
- 85
- In Stock ：
- 85
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Color :
- Black
- Series :
- Standard Edge II
- Contact Finish :
- Gold
- Operating Temperature :
- -55°C~ 85°C
- Flammability Rating :
- UL94 V-0
- Gender :
- FEMALE
- Number of Rows :
- 2
- Termination :
- Solder
- Plating :
- Gold
- Pitch :
- 0.100 2.54mm
- Number of Contacts :
- 30
- Factory Lead Time :
- 10 Weeks
- Number of Power Positions :
- 60
- Max Operating Temperature :
- 85°C
- Housing Material :
- Polyester
- Operating Supply Voltage :
- 400V
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 3A
- Contact Plating :
- Tin, Gold
- Contact Material :
- Phosphor Bronze
- Voltage - Rated :
- 400V
- Height :
- 15.69mm
- Orientation :
- Vertical
- Housing Color :
- Black
- Packaging :
- Tray
- Material - Insulation :
- Polyester, Glass Filled
- Plating Thickness :
- 760 nm
- PCB Mounting Orientation :
- Vertical
- Row Spacing :
- 4.85 mm
- ELV :
- Compliant
- Underplate Material :
- Nickel
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Current Rating :
- 3A
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Min Operating Temperature :
- -55°C
- Card Type :
- Non Specified - Dual Edge
- Number of Positions :
- 60 (56 Loaded)
- Published :
- 2005
- Connector Type :
- Socket
- Read Out :
- Dual
- Circuit Application :
- Power
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Datasheets
- 6489170-1
