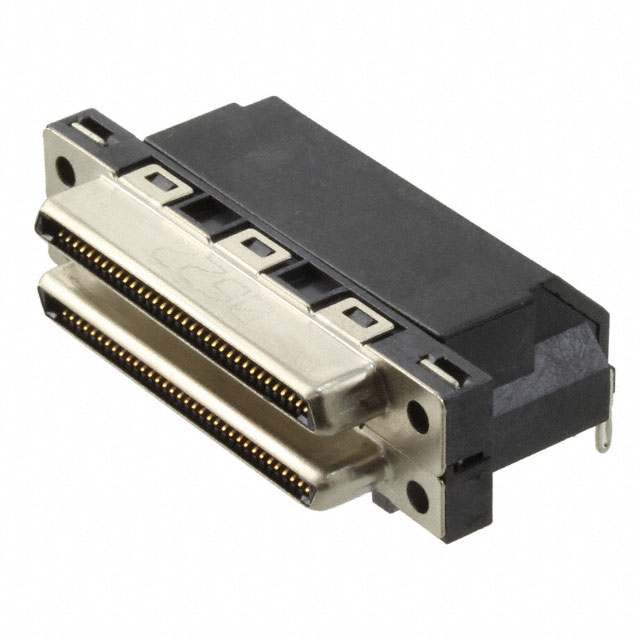

6489232-1
Or copy the link below:
- Mfr.Part #
- 6489232-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STCK RCPT 68/68P R/A SOLDER
- Stock
- 16,078
- In Stock ：
- 16,078
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Centronics Connectors
- Mount :
- Through Hole
- Pitch :
- 800μm
- Contact Finish :
- Gold
- Feature :
- Board Lock, Shielded
- Plating :
- Copper, Nickel
- Shielding :
- Shielded
- Number of Rows :
- 2
- Plating Thickness :
- 760 nm
- Series :
- CHAMP .031
- Orientation :
- RIGHT ANGLE
- RoHS Status :
- RoHS Compliant
- Shell Material :
- Steel
- Termination :
- Solder
- IEC Conformance :
- No
- Contact Material :
- Bronze
- Preloaded :
- yes
- Number of Contacts :
- 68
- Number of Pins :
- 1
- Flange Feature :
- Housing/Shell (M2.6)
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Option :
- GENERAL PURPOSE
- PCB Thickness :
- 1.6mm
- Hole Diameter :
- 1.2 mm
- Number of Positions :
- 68, 68
- MIL Conformance :
- No
- Sealable :
- No
- Housing Material :
- Thermoplastic
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Circuit Application :
- Signal
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Current Rating :
- 300mA
- Contact Plating :
- Gold, Tin
- Lead Length :
- 2.27mm
- Mating Connector Lock :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Packaging :
- Box
- Connector Style :
- Outer Shroud Contacts
- DIN Conformance :
- No
- Factory Lead Time :
- 35 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Stacked, 2 Receptacles
- Published :
- 1999
- PCB Mounting Orientation :
- RIGHT ANGLE
- Datasheets
- 6489232-1
6489232-1 Documents
6489232-1 datasheet pdf and D-Shaped Connectors - Centronics product details from TE Connectivity AMP Connectors stock available at Xinshop
