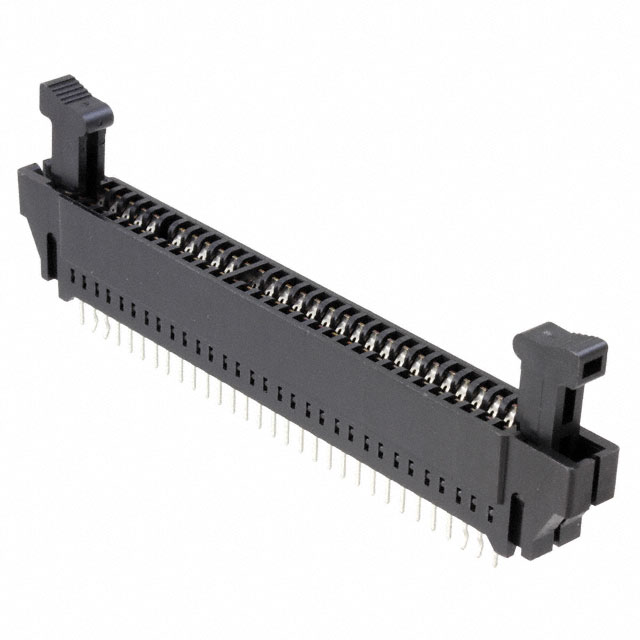

6489165-1
Or copy the link below:
- Mfr.Part #
- 6489165-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 62POS 0.100
- Stock
- 12,036
- In Stock ：
- 12,036
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Body Length or Diameter :
- 3.934 inch
- Contact Finish :
- Gold
- Insertion Force-Max :
- 5.3376 N
- Filter Feature :
- No
- Connector Type :
- Socket
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Read Out :
- Dual
- Underplate Material :
- Nickel
- Color :
- Black
- Contact Resistance :
- 10MOhm
- Published :
- 2001
- Card Thickness :
- 0.062 1.57mm
- Reliability :
- COMMERCIAL
- DIN Conformance :
- No
- Gender :
- FEMALE
- Circuit Application :
- Power
- Contact Current Rating :
- 4.26A
- Number of Rows :
- 2
- Number of Positions :
- 62 (61 Loaded)
- Operating Supply Voltage :
- 400V
- ELV :
- Compliant
- Body Breadth :
- 0.368 inch
- Orientation :
- Vertical
- Max Voltage Rating (AC) :
- 1kV
- Contact Style :
- BELLOWED TYPE
- Number of Contacts :
- 62
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 400V
- Plating Thickness :
- 380 nm
- Material - Insulation :
- Polyester, Glass Filled
- Contact Pattern :
- RECTANGULAR
- Rated Current (Signal) :
- 3.6A
- Body Depth :
- 0.55 inch
- Mount :
- Through Hole
- Withdrawl Force-Min :
- .3336 N
- Card Type :
- Non Specified - Dual Edge
- Option :
- GENERAL PURPOSE
- Additional Feature :
- POLARIZED
- Number Of PCB Rows :
- 2
- Feature :
- Latches
- Series :
- Standard Edge II
- PCB Contact Pattern :
- RECTANGULAR
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Polyester
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Termination :
- Solder
- Contact Plating :
- Gold, Tin
- Factory Lead Time :
- 76 Weeks
- Insulation Resistance :
- 5000000000Ohm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Operating Temperature :
- -55°C~ 85°C
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Pitch :
- 0.100 2.54mm
- Number of Conductors :
- ONE
- Max Current Rating :
- 4.26A
- Height :
- 20.066mm
- JESD-609 Code :
- e3
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Row Spacing :
- 4.85 mm
- Datasheets
- 6489165-1
