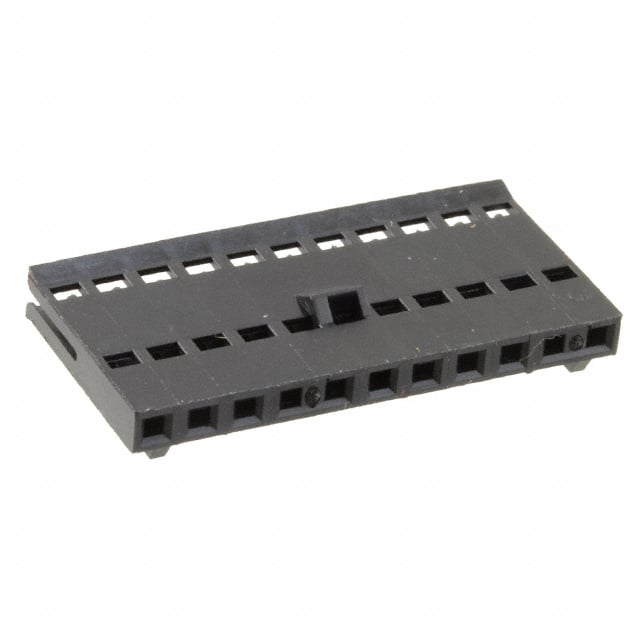

487769-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Max Voltage Rating (AC) :

300V

Length :

27.78mm

Number of Positions :

11

Orientation :

Straight

Option :

GENERAL PURPOSE

ELV :

Compliant

Body/Shell Style :

Receptacle

Factory Lead Time :

9 Weeks

Circuit Application :

Signal

Gender :

FEMALE

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Cable, Free Hanging

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Current Rating :

1.5A

Wire/Cable Type :

Flat Flex

Locking Feature :

Detent Lock

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Published :

1997

Insulation Resistance :

5GOhm

Note :

Contacts Not Included

Depth :

13.71mm

Packaging :

Bulk

DIN Conformance :

No

Flat Flex Type :

FFC

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

Operating Supply Voltage :

300V

Pbfree Code :

yes

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Housing Material :

Thermoplastic

Housing Color :

Black

Total Number of Contacts :

10

Number of Rows :

1

Sealable :

No

IEC Conformance :

No

Contact Style :

SQ PIN-SKT

Mating Alignment :

With

FFC, FCB Thickness :

0.05-0.13mm

Connector Type :

Housing for Female Contacts

ECCN Code :

EAR99

UL Flammability Code :

94V-0

Pitch :

0.100 2.54mm

Rated Current (Signal) :

2A

Operating Temperature :

-65°C~105°C

Filter Feature :

No

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING
