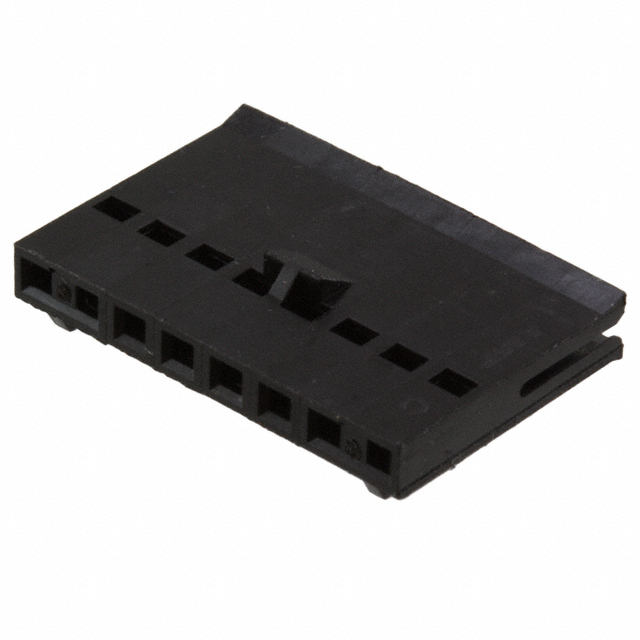

487769-6

Share

Or copy the link below:

Mfr.Part #
487769-6
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN FFC RCPT HSG 8POS 2.54MM
Stock
34,933
In Stock :
34,933

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
FFC, FPC (Flat Flexible) Connector Housings
Locking Feature :
Detent Lock
Number of Positions :
8
Total Number of Contacts :
8
Housing Material :
Thermoplastic
Height :
13.7mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
MIL Conformance :
No
Depth :
13.71mm
Reference Standard :
UL
Lead Free :
Lead Free
Polarization Key :
POLARIZED HOUSING
Body/Shell Style :
Receptacle
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Filter Feature :
No
Mount :
Free Hanging
Factory Lead Time :
23 Weeks
Mixed Contacts :
No
Gender :
FEMALE
Option :
GENERAL PURPOSE
Orientation :
Straight
Current Rating :
2A
Length :
20.16mm
Insulation Resistance :
5GOhm
Contact Pattern :
RECTANGULAR
Contact Style :
SQ PIN-SKT
Pbfree Code :
yes
IEC Conformance :
No
Current Rating (Amps) :
1.5A
UL Flammability Code :
94V-0
ECCN Code :
EAR99
Pitch :
0.100 2.54mm
Connector Type :
Housing for Female Contacts
RoHS Status :
RoHS Compliant
Operating Supply Voltage :
300V
Note :
Contacts Not Included
Mating Alignment :
With
Sealable :
No
DIN Conformance :
No
Published :
1997
Operating Temperature :
-65°C~105°C
Circuit Application :
Signal
Reliability :
COMMERCIAL
Packaging :
Bulk
Material Flammability Rating :
UL94 V-0
Wire/Cable Type :
Flat Flex
ELV :
Compliant
Flat Flex Type :
FFC
Flammability Rating :
UL94 V-0
Number of Rows :
1
FFC, FCB Thickness :
0.05-0.13mm
Housing Color :
Black
Datasheets
487769-6
Introducing FFC, FPC (Flat Flexible) Connector Housings TE Connectivity AMP Connectors 487769-6 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~105°C, 487769-6 pinout, 487769-6 datasheet PDF, 487769-6 amp .Beyond FFC, FPC (Flat Flexible) Connector Housings TE Connectivity AMP Connectors 487769-6 ,we also offer 487378-7, 487526-6, 487526-7, Our vast inventory has you covered. Contact us now for immediate solutions.
