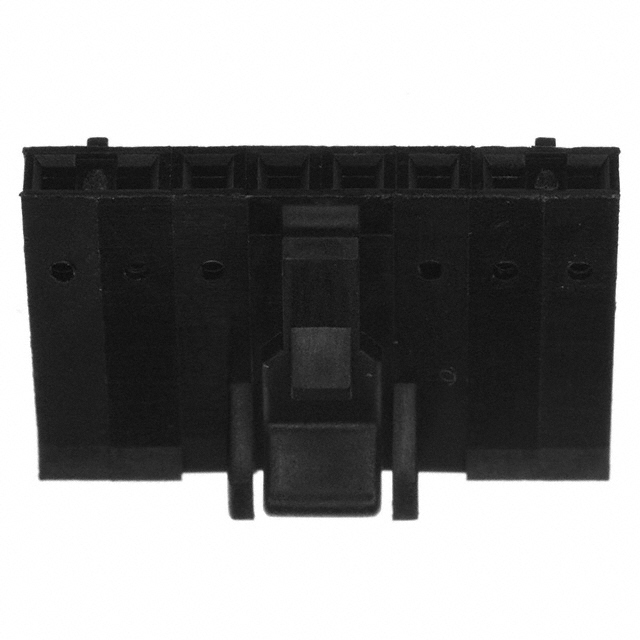

487526-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Option :

GENERAL PURPOSE

Current Rating (Amps) :

1.5A

Additional Feature :

LATCH STYLE HOUSING

RoHS Status :

RoHS Compliant

Sealable :

No

Housing Color :

Black

Operating Supply Voltage :

300V

Reliability :

COMMERCIAL

Mating Alignment :

With

Contact Style :

SQ PIN-SKT

Max Voltage Rating (AC) :

300V

Pbfree Code :

yes

Orientation :

Straight

DIN Conformance :

No

Number of Rows :

1

Flammability Rating :

UL94 V-0

Insulation Resistance :

5GOhm

Operating Temperature :

-65°C~105°C

Number of Positions :

8

Wire/Cable Type :

Flat Flex

Reference Standard :

UL

FFC, FCB Thickness :

0.05-0.13mm

Current Rating :

2A

Gender :

FEMALE

REACH SVHC :

Unknown

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

13.7mm

Packaging :

Bulk

Housing Material :

Thermoplastic

Body/Shell Style :

Receptacle

MIL Conformance :

No

Note :

Contacts Not Included

ECCN Code :

EAR99

Mount :

Cable, Free Hanging

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Contact Design :

STAMPED, STRIP

Material Flammability Rating :

UL94 V-0

Termination :

Crimp

Locking Feature :

Latch Lock

Published :

1997

ELV :

Compliant

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Depth :

13.71mm

Dielectric Withstanding Voltage :

300VAC V

Circuit Application :

Signal

Pitch :

0.100 2.54mm

Total Number of Contacts :

8

Length :

20.16mm

Filter Feature :

No

Connector Type :

Housing for Female Contacts

Factory Lead Time :

14 Weeks

Flat Flex Type :

FFC

Mixed Contacts :

No
