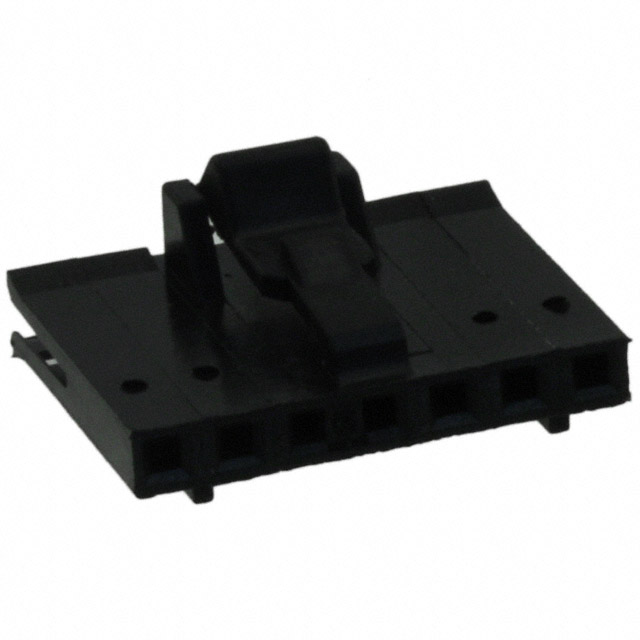

487526-6

Share

Or copy the link below:

Mfr.Part #
487526-6
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN FFC RCPT HSG 7POS 2.54MM
Stock
62
In Stock :
62

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
FFC, FPC (Flat Flexible) Connector Housings
Pbfree Code :
yes
Published :
1997
Sealable :
No
FFC, FCB Thickness :
0.05-0.13mm
Max Voltage Rating (AC) :
300V
Additional Feature :
LATCH STYLE HOUSING
Mixed Contacts :
No
MIL Conformance :
No
Lead Free :
Lead Free
Insulation Resistance :
5GOhm
Number of Rows :
1
Operating Supply Voltage :
300V
Flat Flex Type :
FFC
Reliability :
COMMERCIAL
Lead Pitch :
2.54mm
Housing Color :
Black
Total Number of Contacts :
7
Reference Standard :
UL
Body/Shell Style :
Receptacle
Contact Style :
SQ PIN-SKT
DIN Conformance :
No
Packaging :
Bulk
Mating Alignment :
With
Orientation :
Straight
Wire Size (Min) :
28 AWG
Note :
Contacts Not Included
Locking Feature :
Latch Lock
Number of Positions :
7
Current Rating :
2A
Filter Feature :
No
ECCN Code :
EAR99
Circuit Application :
Signal
Current Rating (Amps) :
1.5A
IEC Conformance :
No
Contact Design :
STAMPED, STRIP
Height :
13.7mm
Wire Size (Max) :
28 AWG
Option :
GENERAL PURPOSE
RoHS Status :
RoHS Compliant
Gender :
FEMALE
Lifecycle Status :
ACTIVE (Last Updated: 1 week ago)
Flammability Rating :
UL94 V-0
Material Flammability Rating :
UL94 V-0
Dielectric Withstanding Voltage :
300VAC V
ELV :
Compliant
Contact Pattern :
RECTANGULAR
Mount :
Cable, Free Hanging
Wire/Cable Type :
Flat Flex
Factory Lead Time :
9 Weeks
Housing Material :
Thermoplastic
Depth :
13.72mm
Connector Type :
Housing for Female Contacts
Operating Temperature :
-65°C~105°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Pitch :
0.100 2.54mm
Length :
17.62mm
Datasheets
487526-6
Introducing FFC, FPC (Flat Flexible) Connector Housings TE Connectivity AMP Connectors 487526-6 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~105°C, 487526-6 pinout, 487526-6 datasheet PDF, 487526-6 amp .Beyond FFC, FPC (Flat Flexible) Connector Housings TE Connectivity AMP Connectors 487526-6 ,we also offer 6-487937-0, 487378-7, 487526-7, Our vast inventory has you covered. Contact us now for immediate solutions.
