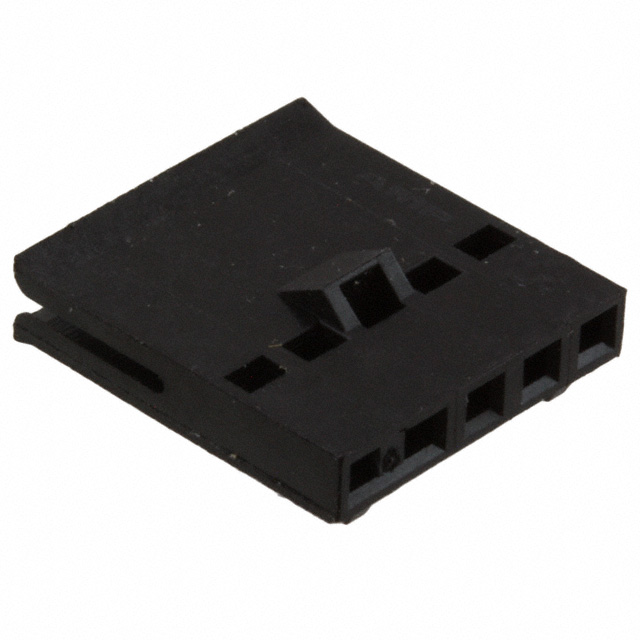

487769-3
Or copy the link below:
- Mfr.Part #
- 487769-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC RCPT HSG 5POS 2.54MM
- Stock
- 8,772
- In Stock ：
- 8,772
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Housings
- Depth :
- 13.71mm
- Sealable :
- No
- Mount :
- Cable, Free Hanging
- Locking Feature :
- Detent Lock
- Min Operating Temperature :
- -65°C
- Color :
- Black
- Number of Positions :
- 5
- Wire/Cable Type :
- Flat Flex
- Published :
- 1997
- Current Rating (Amps) :
- 1.5A
- Pitch :
- 0.100 2.54mm
- Operating Supply Voltage :
- 300V
- Flat Flex Type :
- FFC
- Gender :
- FEMALE
- Number of Contacts :
- 5
- Housing Material :
- Thermoplastic
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Lead Free :
- Lead Free
- Voltage - Rated :
- 300V
- Mating Connector Lock :
- With
- Connector Type :
- Housing for Female Contacts
- Mating Alignment :
- With
- Number of Rows :
- 1
- Operating Temperature :
- -65°C~105°C
- FFC, FCB Thickness :
- 0.05-0.13mm
- Insulation Resistance :
- 5GOhm
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Termination :
- SMD/SMT
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 105°C
- Note :
- Contacts Not Included
- ELV :
- Compliant
- Circuit Application :
- Signal
- Length :
- 12.54mm
- Height :
- 13.7mm
- Housing Color :
- Black
- Max Voltage Rating (AC) :
- 300V
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 2A
- Datasheets
- 487769-3
487769-3 datasheet pdf and FFC, FPC (Flat Flexible) Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
