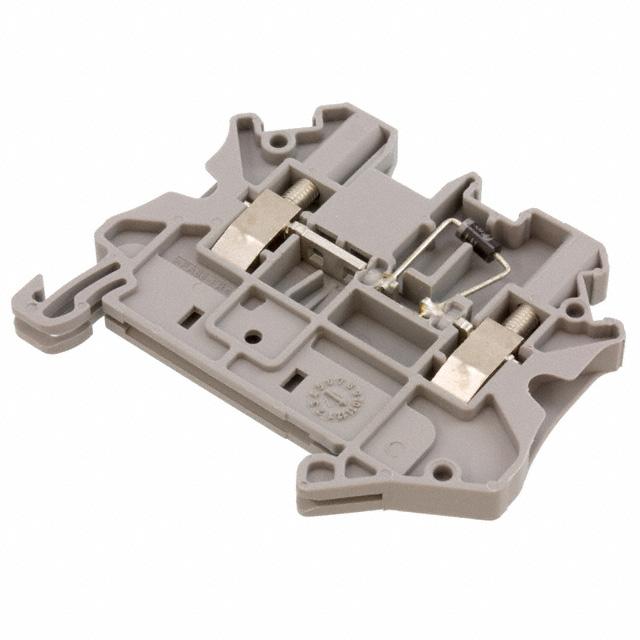

3064140

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Weight :

9.650008g

Number of Levels :

1

Voltage :

600V

Length :

57.8mm

Lead Free :

Lead Free

RoHS Status :

RoHS Compliant

Feature :

Diode

Material - Insulation :

Polyamide (PA), Nylon

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

ECCN Code :

EAR99

Type :

Feed Through

Wire Gauge (Min) :

26 AWG

Width :

5.2mm

Color :

Gray

Published :

2017

Number of Ways :

2

Voltage - IEC :

800V

Termination Style :

Screw

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge or Range - AWG :

12-26 AWG

Material Flammability Rating :

UL94 V-0

Series :

CLIPLINE UT

Stripping Length :

9mm

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Wire/Cable Gauge :

12 AWG

Voltage - Rated :

600V

Height :

55mm

Wire Gauge (Max) :

26 AWG

Current Rating :

20A

Current - IEC :

0.5A

Current :

500mA

Mount :

Through Hole

Safety Approval :

UL

HTS Code :

8536.69.40.40

Additional Feature :

PA, UL 94V-0

Number of Rows :

1

Factory Lead Time :

4 Weeks

Pitch :

2.5mm

Number of Positions :

2
