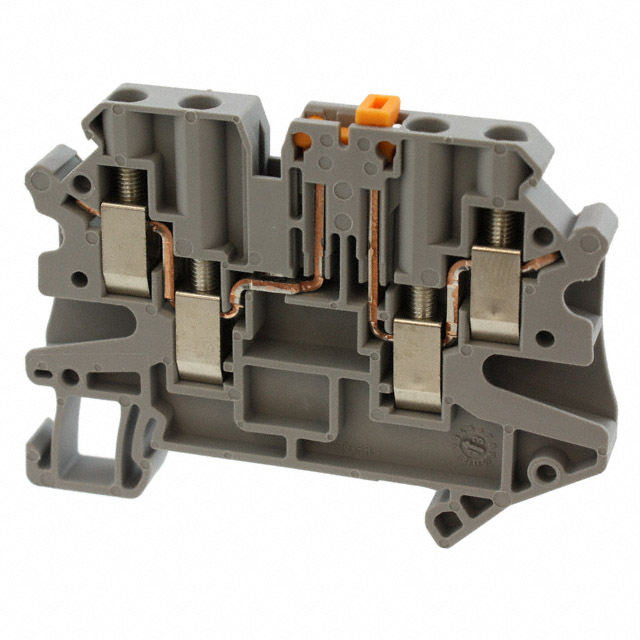

3064043

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Disconnect Type :

Switch, Knife

ECCN Code :

EAR99

Stripping Length :

9mm

Safety Approval :

CSA; CUL; UL

Termination Style :

Screw

RoHS Status :

RoHS Compliant

Material - Insulation :

Polyamide (PA), Nylon

Height :

56.6mm

Wire Cross Section :

6 mm2

Max Operating Temperature :

120°C

Wire/Cable Gauge :

10 AWG

Approval Agency :

CB, CSA, UL, VDE

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

10-26 AWG

Published :

2011

Length :

65.4mm

Series :

CLIPLINE UT

Color :

Gray

Flammability Rating :

UL94 V-0

Current :

20A

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Number of Decks :

1

Voltage - Rated :

500V

Wire Gauge (Min) :

26 AWG

Number of Ways :

4

Current Rating :

20A

Voltage :

300V

Factory Lead Time :

4 Weeks

Number of Rows :

1

Width :

6.2mm

Mount :

Through Hole

Type :

Disconnect

Number of Positions :

4

Voltage - IEC :

500V

Number of Levels :

1

Wire Gauge (Max) :

26 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
