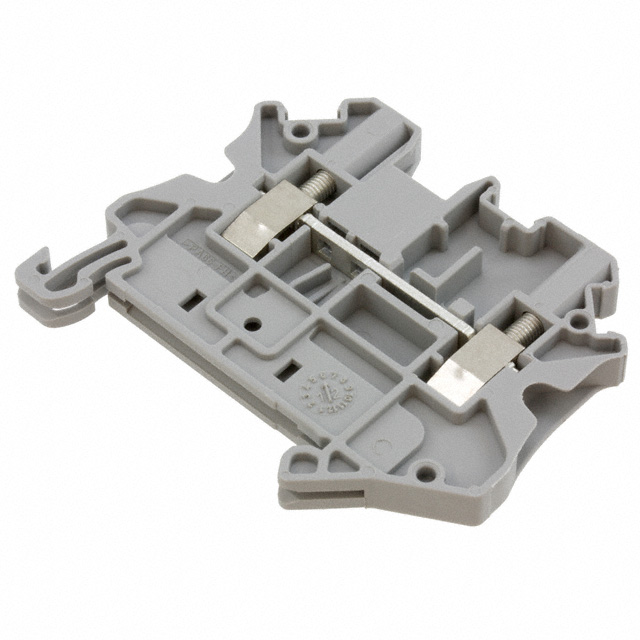

3064085

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

RoHS Status :

RoHS Compliant

Wire Gauge (Max) :

26 AWG

Width :

5.2mm

ECCN Code :

EAR99

Number of Levels :

1

Color :

Gray

Termination Style :

Screw

Current - IEC :

24A

Wire Gauge or Range - AWG :

12-26 AWG

Additional Feature :

PA, UL 94V-0

Moisture Sensitivity Level (MSL) :

Not Applicable

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

600V

Published :

2010

Weight :

9.558013g

Length :

57.8mm

Current Rating :

20A

Pitch :

2.5mm

Max Operating Temperature :

120°C

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

HTS Code :

8536.69.40.40

Type :

Feed Through

Lead Free :

Lead Free

Stripping Length :

9mm

Voltage :

600V

Number of Rows :

1

Factory Lead Time :

7 Weeks

Number of Positions :

2

Number of Ways :

2

Wire/Cable Gauge :

12 AWG

Flammability Rating :

UL94 V-0

Height :

55mm

Mount :

Through Hole

Series :

CLIPLINE UT

Voltage - IEC :

800V

Wire Gauge (Min) :

26 AWG

Number of Decks :

1

Current :

20A

Max Current Rating :

32A

Safety Approval :

UL

Material - Insulation :

Polyamide (PA), Nylon

Pbfree Code :

yes

Approval Agency :

CSA, UL
