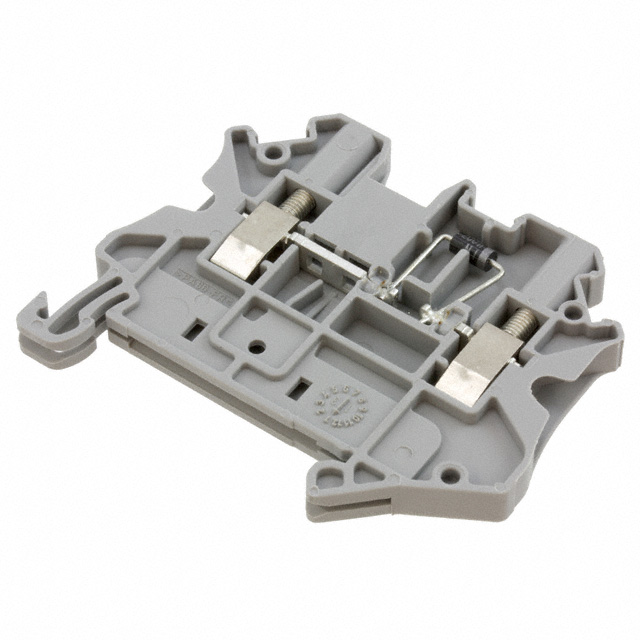

3064137

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Published :

2012

Width :

5.2mm

Wire Gauge or Range - AWG :

12-26 AWG

Weight :

749.788188g

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Number of Levels :

1

Wire Gauge (Min) :

12 AWG

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Current - IEC :

0.5A

Voltage - Rated :

600V

Feature :

Diode

Number of Positions :

2

Max Supply Voltage :

800V

Height :

55mm

Type :

Feed Through

Stripping Length :

9mm

Voltage :

600V

Pitch :

2.5mm

Additional Feature :

PA, UL 94V-0

Factory Lead Time :

4 Weeks

Number of Rows :

1

HTS Code :

8536.69.40.40

Safety Approval :

UL

Termination Style :

Screw

Current Rating :

20A

Depth :

5.2mm

Wire Gauge (Max) :

26 AWG

Series :

CLIPLINE UT

Material - Insulation :

Polyamide (PA), Nylon

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Housing Material :

Polyamide

Current :

500mA

Number of Ways :

2

Length :

57.8mm

Color :

Gray

Max Current Rating :

500mA

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Number of Decks :

1
