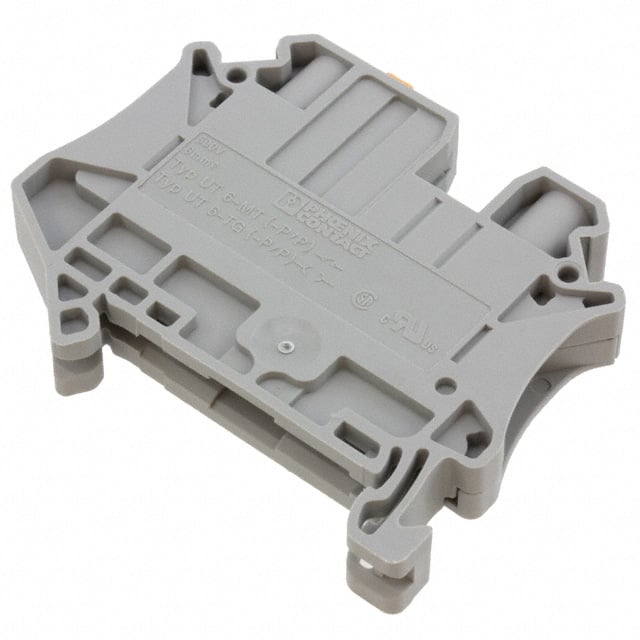

3064069

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

RoHS Status :

RoHS Compliant

Number of Decks :

1

Current :

20A

Width :

8.2mm

Type :

Disconnect

Mount :

Through Hole

Wire/Cable Gauge :

8 AWG

Color :

Gray

Voltage :

600V

Flammability Rating :

UL94 V-0

Voltage - IEC :

500V

Current Rating :

20A

Voltage - Rated :

500V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Published :

2010

ECCN Code :

EAR99

Safety Approval :

CUL; UL

Stripping Length :

10mm

Wire Gauge or Range - AWG :

8-24 AWG

Number of Ways :

2

Number of Positions :

2

Series :

CLIPLINE UT

Material - Insulation :

Polyamide (PA), Nylon

Additional Feature :

STANDARD: UL 94V-0, PA

Max Operating Temperature :

120°C

Height :

56.6mm

Wire Gauge (Max) :

24 AWG

Length :

57.8mm

Number of Rows :

1

Termination Style :

Screw

Material Flammability Rating :

UL94 V-0

Reach Compliance Code :

Unknown

Number of Levels :

1

Approval Agency :

CSA, UL

Wire Gauge or Range - mm² :

0.2-10mm2

Wire Gauge (Min) :

8 AWG

Factory Lead Time :

7 Weeks

Disconnect Type :

Switch, Knife
