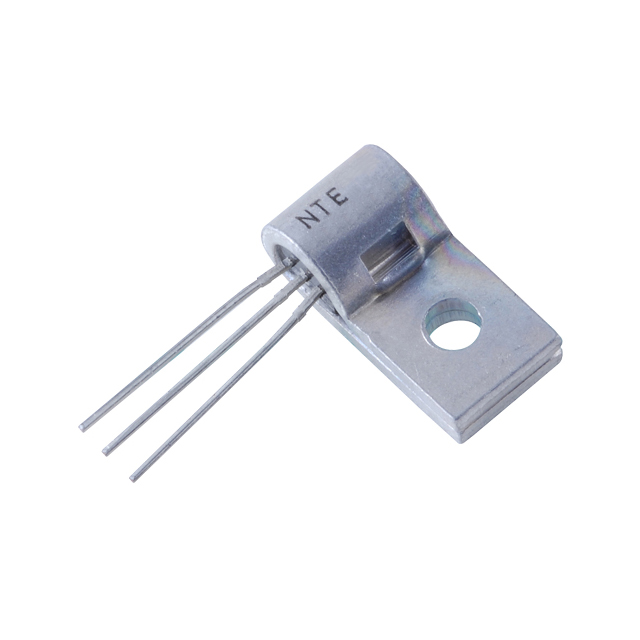

2N3417

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Pbfree Code :

No

Continuous Collector Current :

450mA

JESD-30 Code :

O-PBCY-T3

Published :

2012

Min Operating Temperature :

-65°C

Series :

--

Mounting Type :

Through Hole

Max Collector Current :

100nA

Current - Collector Cutoff (Max) :

100nA (ICBO)

Emitter Base Voltage (VEBO) :

5V

Polarity :

NPN

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Packaging :

Bulk

Power Dissipation-Max :

625mW

Vce Saturation (Max) @ Ib, Ic :

--

Additional Feature :

LOW NOISE

Supplier Device Package :

TO-92

Transistor Application :

SWITCHING

Number of Terminations :

3

DC Current Gain (hFE) (Min) @ Ic, Vce :

180 @ 2mA, 4.5V

Max Operating Temperature :

150°C

DC Current Gain-Min (hFE) :

180

RoHS Status :

RoHS Compliant

Mount :

Through Hole

JESD-609 Code :

e0

HTS Code :

8541.21.00.95

Collector Base Voltage (VCBO) :

50V

Collector Emitter Saturation Voltage :

300mV

Pin Count :

3

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Factory Lead Time :

8 Weeks

Voltage - Collector Emitter Breakdown (Max) :

50V

Operating Temperature :

-65°C ~ 150°C (TJ)

Package / Case :

TO-92

Frequency - Transition :

--

Terminal Position :

BOTTOM

hFE Min :

180

Collector Emitter Voltage (VCEO) :

5V

ECCN Code :

EAR99

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Elements :

1

Transistor Type :

NPN

Collector Emitter Breakdown Voltage :

50V

Element Configuration :

Single

Qualification Status :

Not Qualified
