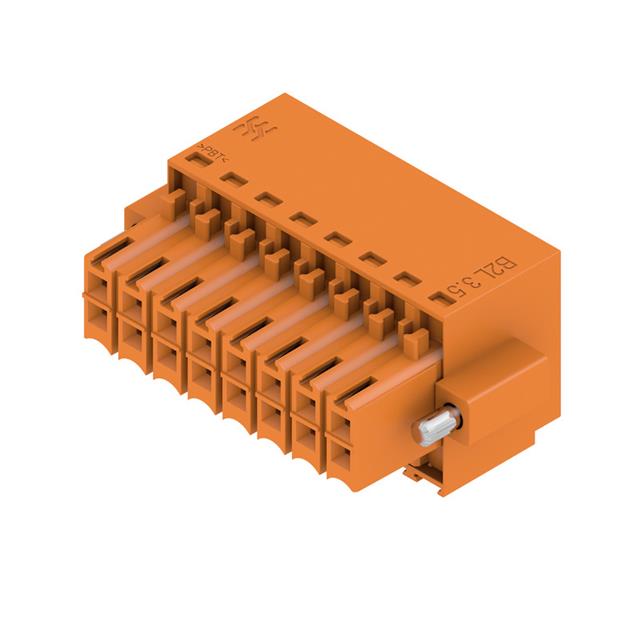

1748060000

Share

Or copy the link below:

Mfr.Part #
1748060000
Manufacturer
Weidmuller
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 16POS STR 3.5MM
Stock
7,158
In Stock :
7,158

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Weidmuller
Product Category :
Headers, Plugs and Sockets
Ingress Protection :
IP20
Number of Positions Per Level :
8
Total Number of Contacts :
16
Current - IEC :
10.3A
Pbfree Code :
yes
Width :
15.6mm
Termination :
Crimp
Series :
Omnimate B2L
Mixed Contacts :
No
Insulation Resistance :
1MOhm
Voltage :
150V
Number of Positions :
16
Number of Rows :
2
MIL Conformance :
No
Depth :
20.6mm
Pitch :
0.138 3.50mm
Orientation :
Straight
Positions Per Level :
8
Radiation Hardening :
No
RoHS Status :
RoHS Compliant
Housing Material :
Polybutylene Terephthalate (PBT)
Color :
Orange
Filter Feature :
No
Wire Gauge or Range - mm² :
0.2-1mm2
Material Flammability Rating :
UL94 V-0
Published :
2009
DIN Conformance :
No
Option :
GENERAL PURPOSE
Operating Temperature :
-50°C~100°C
Current :
10A
Max Current Rating :
10A
Length :
35mm
Type :
Plug, Female Sockets
Wire Gauge (Min) :
18 AWG
Mount :
Free Hanging, Panel
Flammability Rating :
UL94 V-0
IEC Conformance :
No
Contact Material :
COPPER ALLOY
Number of Levels :
2
Wire Strip Length :
7mm
Mounting Type :
Free Hanging (In-Line)
Voltage - IEC :
250V
Wire Gauge (Max) :
28 AWG
Plug Wire Entry :
180°
Insulation Height :
0.618 15.70mm
Packaging :
Bulk
Wire Gauge or Range - AWG :
16-28 AWG
Termination Style :
Screwless - Spring Cage, Tension Clamp
Factory Lead Time :
12 Weeks
Contact Mating Finish :
Tin
Max Supply Voltage :
150V
Feature :
Mating Flange
Lead Free :
Lead Free
Datasheets
1748060000
Introducing Headers, Plugs and Sockets Weidmuller 1748060000 from Chip IC,where excellence meets affordability. This product stands out with its Voltage:150V, Operating Temperature:-50°C~100°C, Type:Plug, Female Sockets, Mounting Type:Free Hanging (In-Line), 1748060000 pinout, 1748060000 datasheet PDF, 1748060000 amp .Beyond Headers, Plugs and Sockets Weidmuller 1748060000 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

Weidmuller 1748060000


Bulk 0.138 3.50mm Orange 2 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate B2L Polybutylene Terephthalate (PBT) Tin Copper Alloy

1748060000 Overview


Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate B2L Series.It is more powerful in many ways due to its Mating Flange feature.It is mounted by Free Hanging, Panel.It operates at an operating temperature of -50°C~100°C.This chip should not be operated above 150V volts.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1748060000 Features


Omnimate B2L series


1748060000 Applications


There are a lot of Weidmüller
1748060000 Terminal Blocks applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
