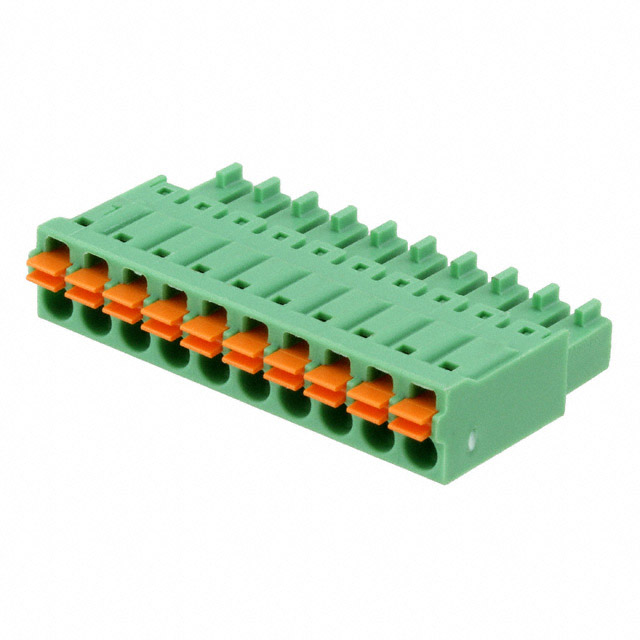

1748053

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Plug Wire Entry :

180°

HTS Code :

8536.69.40.40

Series :

COMBICON FMC

Pitch :

0.150 3.81mm

Factory Lead Time :

4 Weeks

Termination Style :

Screwless - Push-In Spring

Voltage - Rated :

160V

Width :

38.54mm

Current :

8A

Published :

2011

Current Rating :

8A

Wire Gauge (Max) :

24 AWG

Termination :

Screwless

Insulation Height :

0.307 7.80mm

Pbfree Code :

yes

Contact Mating Finish :

Tin

Number of Levels :

1

Weight :

6.157998g

Wire Gauge or Range - mm² :

0.2-1.5mm2

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Color :

Green

Wire Gauge or Range - AWG :

16-24 AWG

Voltage :

150V

Number of Rows :

1

Number of Ways :

10

Type :

Plug, Female Sockets

Material :

Polyamide, Tin

Housing Material :

Polyamide (PA), Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Method :

SPRING LOADED

Gender :

FEMALE

Safety Approval :

CUL; GOST; UL

Material Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

16 AWG

Wire Strip Length :

10mm

Packaging :

Bulk

Max Current Rating :

8A

Orientation :

Straight

Number of Contacts :

10

Number of Decks :

1

Reach Compliance Code :

Unknown

Voltage - IEC :

320V

Mount :

Cable, Free Hanging

Additional Feature :

PA, UL 94V-0

Depth :

7.8mm
