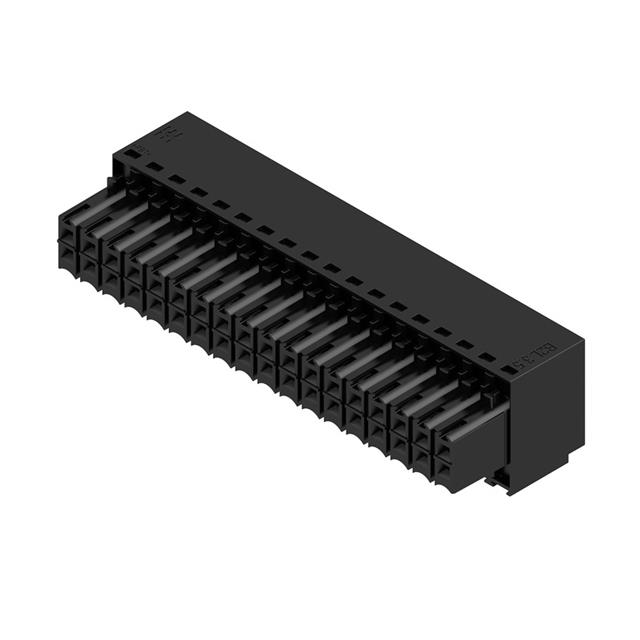

1748000000
- Mfr.Part #
- 1748000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 36POS STR 3.5MM
- Stock
- 40,423
- In Stock :
- 40,423
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- MIL Conformance :
- No
- Orientation :
- Straight
- Contact Mating Finish :
- Tin
- Mount :
- Cable, Free Hanging
- Insulation Resistance :
- 1MOhm
- Packaging :
- Bulk
- Length :
- 63mm
- Color :
- Black
- Total Number of Contacts :
- 36
- Wire Gauge (Max) :
- 22 AWG
- Voltage :
- 150V
- Pitch :
- 0.138 3.50mm
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- Number of Levels :
- 2
- Termination :
- Crimp
- Published :
- 2009
- Wire Gauge or Range - mm² :
- 0.2-1mm2
- Max Current Rating :
- 10A
- Voltage - UL :
- 300V
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-0
- Number of Positions Per Level :
- 18
- Contact Material :
- COPPER ALLOY
- Termination Style :
- Screwless - Spring Cage, Tension Clamp
- Current - IEC :
- 10.3A
- Operating Temperature :
- -50°C~100°C
- Number of Positions :
- 36
- Ingress Protection :
- IP20
- Option :
- GENERAL PURPOSE
- Voltage - IEC :
- 200V
- Radiation Hardening :
- No
- Type :
- Plug, Female Sockets
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge or Range - AWG :
- 16-28 AWG
- Number of Rows :
- 2
- Filter Feature :
- No
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Max Supply Voltage :
- 150V
- Depth :
- 20.6mm
- Lead Free :
- Lead Free
- Series :
- Omnimate B2L
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Min) :
- 16 AWG
- Plug Wire Entry :
- 180°
- Wire Strip Length :
- 7mm
- Factory Lead Time :
- 14 Weeks
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Current :
- 10A
- Insulation Height :
- 0.618 15.70mm
- Width :
- 20.6mm
- DIN Conformance :
- No
- Datasheets
- 1748000000

Bulk 0.138 3.50mm Black 2 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate B2L Polybutylene Terephthalate (PBT) Tin Copper Alloy
1748000000 Overview
This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate B2L Series.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -50°C~100°C Operating Temperature.It is recommended that this chip's supply voltage does not exceed 150V.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
1748000000 Features
Omnimate B2L series
1748000000 Applications
There are a lot of Weidmüller
1748000000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
