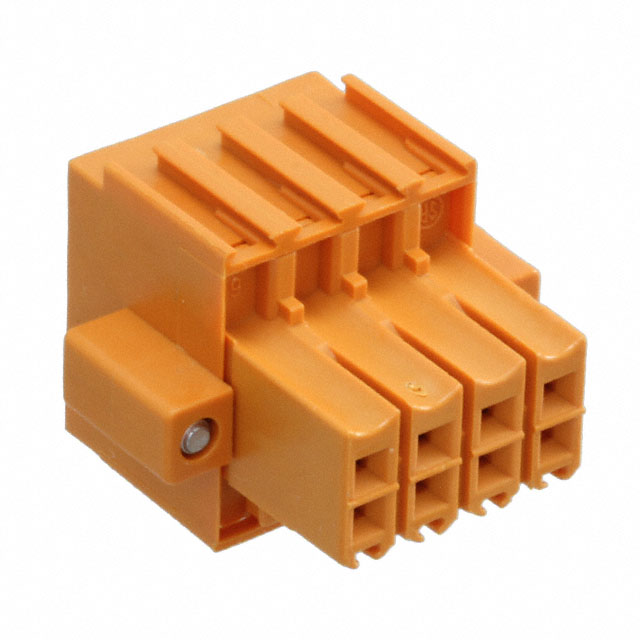

1748020000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Termination :

Crimp

Depth :

20.6mm

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

No

Width :

15.6mm

Feature :

Mating Flange

Radiation Hardening :

No

Mount :

Free Hanging, Panel

Option :

GENERAL PURPOSE

Current :

10A

Number of Rows :

2

RoHS Status :

RoHS Compliant

Type :

Plug, Female Sockets

Lead Free :

Lead Free

Termination Style :

Screwless - Spring Cage, Tension Clamp

Pbfree Code :

yes

Number of Positions Per Level :

4

Insulation Resistance :

1MOhm

Flammability Rating :

UL94 V-0

Pitch :

0.138 3.50mm

Length :

21mm

Plug Wire Entry :

180°

Insulation Height :

0.618 15.70mm

Wire Gauge or Range - AWG :

16-28 AWG

Max Supply Voltage :

300V

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

12 Weeks

Voltage :

150V

Current - IEC :

10.3A

Voltage - IEC :

250V

Contact Material :

COPPER ALLOY

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

Series :

Omnimate B2L

Max Current Rating :

10A

IEC Conformance :

No

Total Number of Contacts :

8

Contact Mating Finish :

Tin

Published :

2009

Number of Positions :

8

Ingress Protection :

IP20

Packaging :

Bulk

Number of Levels :

2

Filter Feature :

No

Wire Gauge (Max) :

28 AWG

Wire Gauge or Range - mm² :

0.2-1mm2

Housing Material :

Polybutylene Terephthalate (PBT)

Orientation :

Straight

Color :

Orange

DIN Conformance :

No

Wire Gauge (Min) :

18 AWG

Wire Strip Length :

7mm

Operating Temperature :

-50°C~100°C
