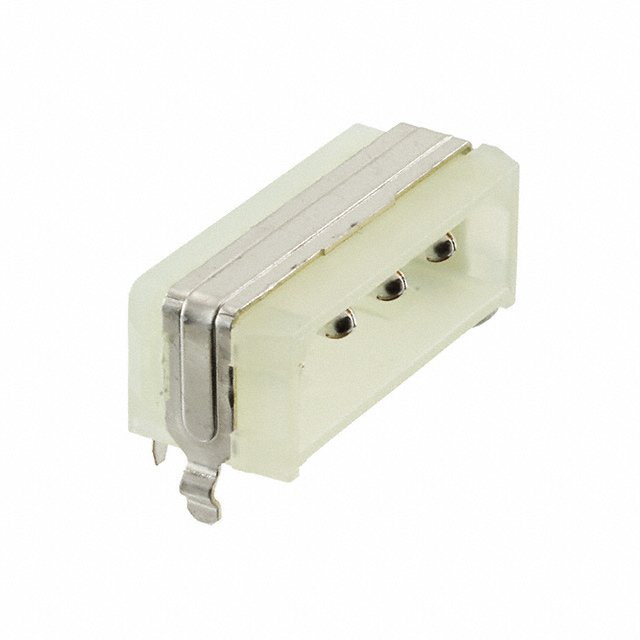

174804-1
Or copy the link below:
- Mfr.Part #
- 174804-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 5.08MM
- Stock
- 2,420
- In Stock ：
- 2,420
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- PCB Thickness :
- 63μm
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Voltage - Rated :
- 250VAC
- Insulation Height :
- 0.346 8.80mm
- Fastening Type :
- Locking Ramp
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Contact Retention :
- Without
- Housing Color :
- Natural
- Number of Terminations :
- 4
- Max Voltage Rating (AC) :
- 250V
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Pbfree Code :
- yes
- Mixed Contacts :
- No
- RoHS Status :
- RoHS Compliant
- Feature :
- Board Lock
- Contact Shape :
- Circular
- Pitch - Mating :
- 0.200 5.08mm
- DIN Conformance :
- No
- Sealable :
- No
- Depth :
- 11.5mm
- Operating Temperature :
- -20°C~105°C
- Applications :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Contact Current Rating :
- 10A
- Contact Finish - Mating :
- Tin
- Length :
- 25.3mm
- Height :
- 13mm
- Additional Feature :
- POLARIZED
- Filter Feature :
- No
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Operating Supply Voltage :
- 250V
- Mount :
- Through Hole
- Approval Agency :
- CSA
- IEC Conformance :
- No
- Series :
- Commercial MATE-N-LOK
- Flammability Rating :
- UL94 V-2
- Circuit Application :
- Power
- Width :
- 11.5mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Current Rating :
- 13A
- Max Voltage Rating (DC) :
- 250.25kV
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Nylon
- Factory Lead Time :
- 17 Weeks
- Contact Length - Post :
- 0.150 3.81mm
- Packaging :
- Bulk
- Orientation :
- RIGHT ANGLE
- Empty Shell :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mounting Type :
- Through Hole, Right Angle
- Published :
- 2008
- Datasheets
- 174804-1
Commercial MATE-N-LOK Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 Board to Cable/Wire 0.346 8.80mm Height
174804-1 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Commercial MATE-N-LOK Series.Other features include POLARIZED, to name just a few.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.A chip with 4 terminations can be found.It runs on 250V voltage.Devices operate at -20°C~105°C operating temperatures.
174804-1 Features
4 basic kinds of terminations
Commercial MATE-N-LOK series
174804-1 Applications
There are a lot of TE Connectivity AMP Connectors
174804-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
