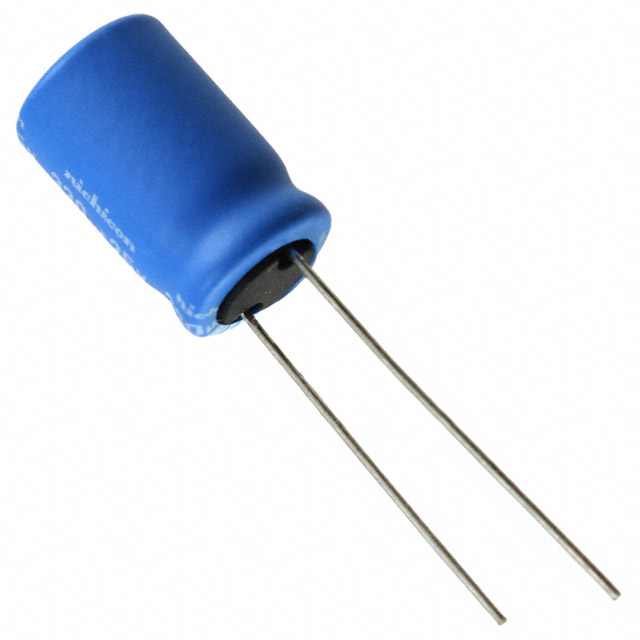

UBT2A220MPD
Or copy the link below:
- Mfr.Part #
- UBT2A220MPD
- Manufacturer
- Nichicon
- Package / Case
- Radial, Can
- Datasheet
- Download
- Description
- CAP ALUM 22UF 20% 100V RADIAL
- Stock
- 327
- In Stock ：
- 327
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nichicon
- Product Category :
- Aluminum Electrolytic Capacitors
- Packaging :
- Bulk
- Dielectric Material :
- Aluminium
- Applications :
- Automotive
- Size / Dimension :
- 0.394Dia 10.00mm
- Lead Pitch :
- 5mm
- Ripple Current :
- 480mA
- JESD-609 Code :
- e3
- Capacitor Type :
- ALUMINUM ELECTROLYTIC CAPACITOR
- Mounting Type :
- Through Hole
- Height :
- 12.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Leakage Current :
- 4μA
- Dissipation Factor :
- 0.8 %
- Voltage - Rated DC :
- 100V
- Height Seated (Max) :
- 0.571 14.50mm
- Lead Free :
- Lead Free
- Lifetime @ Temp :
- 3000 Hrs @ 125°C
- Mount :
- Through Hole
- Tolerance :
- ±20%
- Lead Spacing :
- 0.197 5.00mm
- Terminal Shape :
- Wire
- Diameter :
- 10mm
- Polarization :
- Polar
- Termination :
- Radial
- Operating Temperature :
- -40°C~125°C
- Series :
- UBT
- Impedance :
- 800mOhm
- ECCN Code :
- EAR99
- Published :
- 2009
- Factory Lead Time :
- 16 Weeks
- Radiation Hardening :
- No
- Tan Delta :
- 0.08
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Number of Pins :
- 2
- Lead Diameter :
- 600 µm
- Voltage :
- 100V
- Capacitance :
- 22µF
- Ripple Current @ High Frequency :
- 480mA @ 100kHz
- Ripple Current @ Low Frequency :
- 240mA @ 120Hz
- Life (Hours) :
- 3000 hours
- Number of Terminations :
- 2
- Terminal Finish :
- Matte Tin (Sn)
- Package / Case :
- Radial, Can
- Datasheets
- UBT2A220MPD
UBT2A220MPD Documents
UBT 22μF Capacitor ±20% Bulk Through Hole 480mA 0.394Dia 10.00mm -40°C~125°C Polar 5mm Radial, Can
