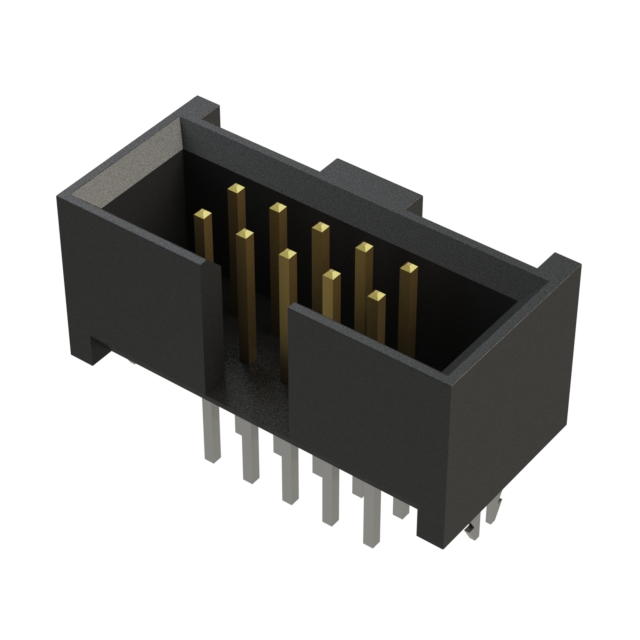

SHF-105-01-F-D-TH-LC
Or copy the link below:
- Mfr.Part #
- SHF-105-01-F-D-TH-LC
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 1.27MM
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Gender :
- Male
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Radiation Hardening :
- No
- Insulation Color :
- Black
- Contact Finish Thickness - Mating :
- 3.00μin 0.076μm
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 3A
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.075 1.91mm
- Contact Material :
- Phosphor Bronze
- Pitch - Mating :
- 0.050 1.27mm
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8536.69.40.40
- Series :
- SHF
- Fastening Type :
- Push-Pull
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.210 5.33mm
- Factory Lead Time :
- 3 Weeks
- Termination :
- Solder
- Contact Length - Mating :
- 0.120 3.05mm
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Feature :
- Board Lock, Keying Slot
- Number of Positions :
- 10
- Number of Rows :
- 2
- Operating Temperature :
- -55°C~125°C
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Mounting Type :
- Through Hole
- Datasheets
- SHF-105-01-F-D-TH-LC
SHF Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 10-Position Board to Cable/Wire 0.210 5.33mm Height
SHF-105-01-F-D-TH-LC Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the SHF Series, it can be found in this category.With its Board Lock, Keying Slot feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.
SHF-105-01-F-D-TH-LC Features
SHF series
SHF-105-01-F-D-TH-LC Applications
There are a lot of Samtec Inc.
SHF-105-01-F-D-TH-LC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
